Connecting with an external MIDI device
On the GX-100, you can use MIDI to perform the following operations.
- For details on MIDI, refer to “GX-100 Parameter Guide” (BOSS website).
Operations from the GX-100
Operation | Explanation |
|---|---|
Transmit program change messages | When you select a memory on the GX-100, the program change message specified by MEMORY MIDI is also transmitted. The external MIDI device that receives this program change message will switch to the corresponding settings. |
Transmit control change messages | When you operate the [C1]–[C2] switches or the footswitches or expression pedals connected to the CTL 3, 4/EXP 2 jack, this is output as a control change message. These messages can control parameters on an external MIDI device. |
Operations from an External MIDI Device
Operation | Explanation |
|---|---|
Switch memory numbers | When the GX-100 receives a program change message from an external MIDI device, the GX-100 will change memories. |
Receiving Control Change messages | The GX-100 can receive control change messages to control a specified parameter while you perform. |
Receive data | The GX-100 can receive data that is transmitted from another GX-100 unit, or data that was saved on a MIDI sequencer. |

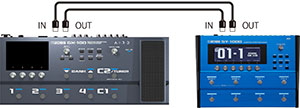

Connection example
Settings
- Following the steps in “Basic menu operations”, select the sub-menu item in [MENU] Ó <MIDI>.
- If you’ve selected “MIDI SETTINGS” in the sub-menu, drag the parameter icon up/down to change the value.
- If you’ve selected “PROGRAM MAP” in the sub-menu, use knobs [1]–[4] to change the values.
