FV (FOOT VOLUME)
HEXARAY: POSITION status is shown.
This is a volume control effect.
Normally, this is controlled with an expression pedal connected to the CTL 2, 3/EXP 2 jack.
Parameter | Value | Explanation |
|---|---|---|
POSITION | 0–100 | Adjusts the volume. |
MIN | 0–100 | Sets the volume when the heel of the EXP Pedal is depressed. |
MAX | 0–100 | Selects the volume when the toe of the EXP Pedal is depressed. |

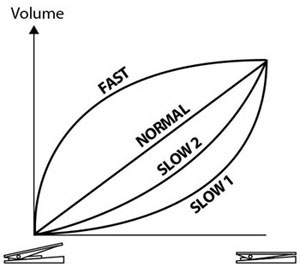

CURVE | SLOW1, SLOW2, NORMAL, FAST | You can select how the actual volume changes relative to the amount the pedal is pressed.
|
