Adjusting the volume balance and effect Sends

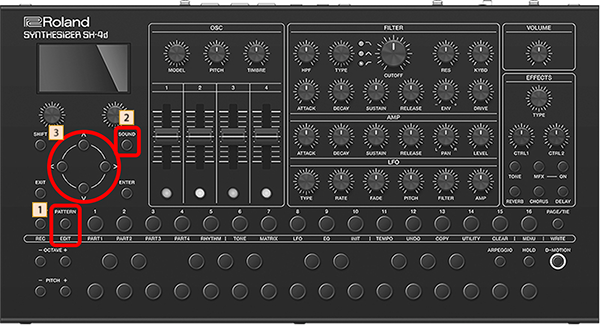

  1. Press the [PATTERN] button.
  2. The PATTERN screen appears.
  3. Press the [SOUND] button.
  4. The MIXER screen appears, and the following operations are available.

  6. Controller

    Explanation

    [OSC 1]–[OSC 4] sliders

    Adjusts the volume of parts 1–4.

    [TIMBRE] button

    Adjusts the volume of part R (RHYTHM).

    [OSC 1]–[OSC 4] buttons

    Selects parts 1–4.

    [1]–[5] buttons

    Mutes/unmutes parts 1–4 and part R (RHYTHM).

    Keyboard buttons

    Mutes/unmutes rhythm instruments 1–26 for part R (RHYTHM).

  7. Use the [ä] [å] [ç] [æ] buttons to select the following parameters, and set the values using the [2] knob.

Parameter

Explanation

Mix Level

Sets the volume of each part.

This parameter is different from the Part Level parameter that’s set using the AMP [LEVEL] knob.

Part Pan

Sets the pan position for the part’s sound.

This parameter is the same as the parameter that’s set using the AMP [PAN] knob.

Reverb Send

Specifies the send level to the pattern reverb.

Chorus Send

Specifies the send level to the pattern chorus.

Delay Send

Specifies the send level to the pattern delay.

MEMO

  1. For the rhythm part, the amount of signal sent to the pattern reverb/chorus/delay from each instrument is the value set for each instrument with the EFFECT [CTRL 1] knob, multiplied by the Reverb/Chorus/Delay Send value that’s set on the MIXER screen.When adjusting the send amount with the [CTRL 1] knob, raise the Reverb/Chorus/Delay Send level on the MIXER screen.
  2. You can use the [OSC 1]–[OSC 4] sliders and the [TIMBRE] knob to adjust the volume of each part, even when the PATTERN screen is shown.
