Equalizer

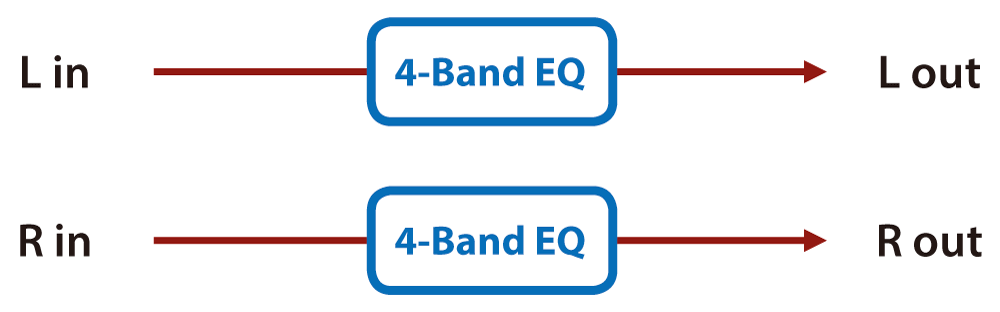

This is a four-band stereo equalizer (low, mid x 2, high).
Parameter | Value | Explanation |
|---|---|---|
Low Freq | 20, 25, 31, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400 [Hz] | Frequency of the low range |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
Mid1 Freq | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 1 |
Mid1 Gain | -15–+15 [dB] | Gain of the middle range 1 |
Mid1 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 1 Higher values make the bandwidth narrower. |
Mid2 Freq | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 2 |
Mid2 Gain | -15–+15 [dB] | Gain of the middle range 2 |
Mid2 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 2 Higher values make the bandwidth narrower. |
HighFreq | 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000 [Hz] | Frequency of the high range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
