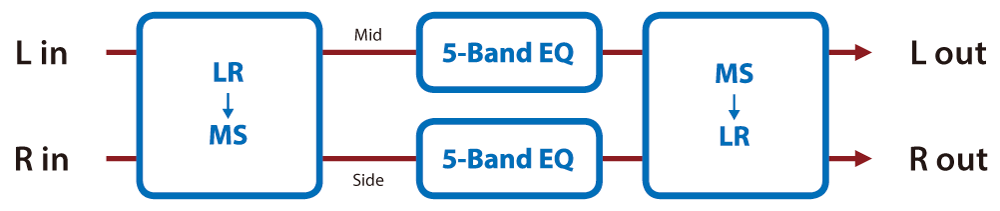

Mid-Side EQ (Mid-side equalizer)
This effect allows the left/right signals that have similar phase to be tonally adjusted in a different way than the left/right signals that have different phase.
Parameter | Value | Explanation |
|---|---|---|
M EQ Switch | OFF, ON | Switches whether to apply tonal adjustment to left/right input signals whose phase is similar (in phase). |
M In G | -12.00–+12.00 [dB] | Volume of left/right input signals whose phase is similar (in phase) |
M Low F | 20, 25, 31, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400 [Hz] | Frequency of the low range |
M Low G | -12.00–+12.00 [dB] | Amount of boost/cut for the low-frequency range |
M Mid1 F | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 1 |
M Mid1G | -12.00–+12.00 [dB] | Gain of the middle range 1 |
M Mid1 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 1 Higher values make the bandwidth narrower. |
M Mid2 F | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 2 |
M Mid2G | -12.00–+12.00 [dB] | Gain of the middle range 2 |
M Mid2 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 2 Higher values make the bandwidth narrower. |
M Mid3 F | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 3 |
M Mid3G | -12.00–+12.00 [dB] | Gain of the middle range 3 |
M Mid3 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 3 Higher values make the bandwidth narrower. |
M High F | 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000 [Hz] | Frequency of the high range |
M HighG | -12.00–+12.00 [dB] | Amount of boost/cut for the high-frequency range |
S EQ Switch | OFF, ON | Switches whether to apply tonal adjustment to left/right input signals whose signals are considerably out of phase. |
S In G | -12.00–+12.00 [dB] | Volume of left/right input signals whose signals are considerably out of phase. |
S Low F | 20, 25, 31, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400 [Hz] | Frequency of the low range |
S Low G | -12.00–+12.00 [dB] | Amount of boost/cut for the low-frequency range |
S Mid1 F | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 1 |
S Mid1G | -12.00–+12.00 [dB] | Gain of the middle range 1 |
S Mid1 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 1 Higher values make the bandwidth narrower. |
S Mid2 F | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 2 |
S Mid2G | -12.00–+12.00 [dB] | Gain of the middle range 2 |
S Mid2 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 2 Higher values make the bandwidth narrower. |
S Mid3 F | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000 [Hz] | Frequency of the middle range 3 |
S Mid3G | -12.00–+12.00 [dB] | Gain of the middle range 3 |
S Mid3 Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Width of the middle range 3 Higher values make the bandwidth narrower. |
S High F | 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000 [Hz] | Frequency of the high range |
S HighG | -12.00–+12.00 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
