Spectrum

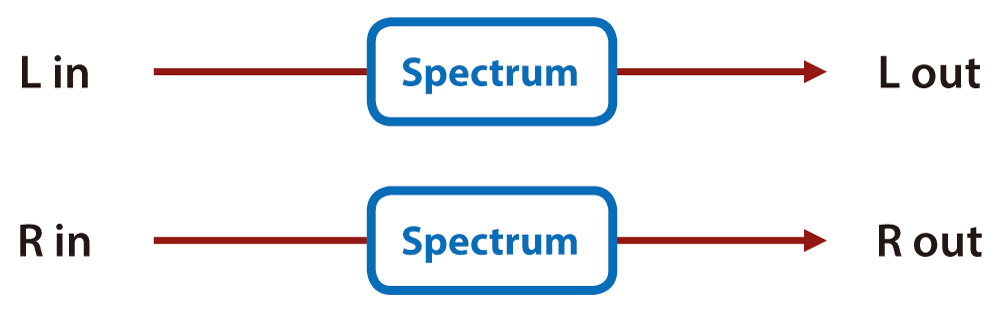

This is a stereo spectrum. Spectrum is a type of filter which modifies the timbre by boosting or cutting the level at specific frequencies.
Parameter | Value | Explanation |
|---|---|---|
Band1 | -15–+15 [dB] | Gain of each frequency band |
Band2 | ||
Band3 | ||
Band4 | ||
Band5 | ||
Band6 | ||
Band7 | ||
Band8 | ||
Q | 0.5, 1.0, 2.0, 4.0, 8.0 | Simultaneously adjusts the width of the adjusted ranges for all the frequency bands. |
Level | 0–127 | Output Level |
