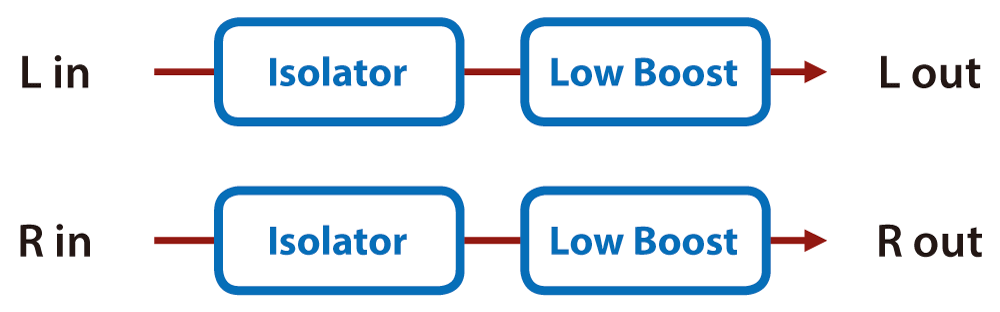

Isolator
This is an equalizer which cuts the volume greatly, allowing you to add a special effect to the sound by cutting the volume in varying ranges.
Parameter | Value | Explanation |
|---|---|---|
Low Level | -60–+4 [dB] | These boost and cut each of the High, Middle, and Low frequency ranges. At -60 dB, the sound becomes inaudible. 0 dB is equivalent to the input level of the sound. |
Mid Level | -60–+4 [dB] | |
High Level | -60–+4 [dB] | |
Low AP Sw | OFF, ON | Turns the Anti-Phase function on and off for the Low frequency ranges. When turned on, the counter-channel of stereo sound is inverted and added to the signal. |
Low AP Lv | 0–127 | Adjusts the level settings for the Low frequency ranges. Adjusting this level for certain frequencies allows you to lend emphasis to specific parts (This is effective only for stereo source.). |
Mid AP Sw | OFF, ON | Settings of the Anti-Phase function for the Middle frequency ranges. The parameters are the same as for the Low frequency ranges. |
Mid AP Lv | 0–127 | |
Boost Sw | OFF, ON | Turns Low Booster on/off. This emphasizes the bottom to create a heavy bass sound. |
Boost Lv | 0–127 | Increasing this value gives you a heavier low end. Depending on the Isolator and filter settings this effect may be hard to distinguish. |
Level | 0–127 | Output Level |
