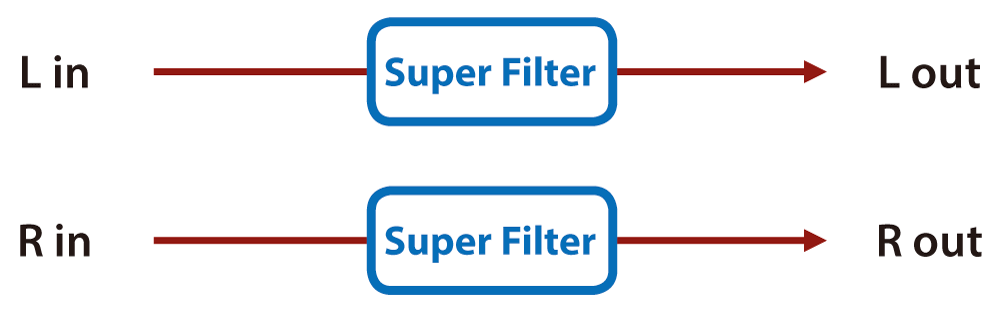

SuperFilter
This is a filter with an extremely sharp slope. The cutoff frequency can be varied cyclically.
Parameter | Value | Explanation |
|---|---|---|
Type | LPF, BPF, HPF, NOTCH | Filter type Frequency range that will pass through each filter LPF: Frequencies below the cutoff BPF: Frequencies in the region of the cutoff HPF: Frequencies above the cutoff NOTCH: Frequencies other than the region of the cutoff |
Slope | -12, -24, -36 [dB] | Amount of attenuation per octave -12 dB: Gentle -24 dB: Steep -36 dB: Extremely steep |
Cutoff | 0–127 | Cutoff frequency of the filter Increasing this value will raise the cutoff frequency. |
Resonance | 0–100 | Filter resonance level Increasing this value will emphasize the region near the cutoff frequency. |
Gain | 0–+12 [dB] | Amount of boost for the filter output |
Mod Sw | OFF, ON | On/off switch for cyclic change |
Mod Wave | TRI, SQR, SIN, SAW1, SAW2 | How the cutoff frequency will be modulated TRI: Triangle wave SQR: Square wave SIN: Sine wave SAW1: Sawtooth wave (upward) SAW2: Sawtooth wave (downward)
|
Rate Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
Rate | 0.05–10.00 [Hz] | Frequency of modulation
|
Rate Note | ||
Depth | 0–127 | Depth of modulation |
Attack | 0–127 | Speed at which the cutoff frequency will change This is effective if Mod Wave is SQR, SAW1, or SAW2. |
Level | 0–127 | Output Level |
