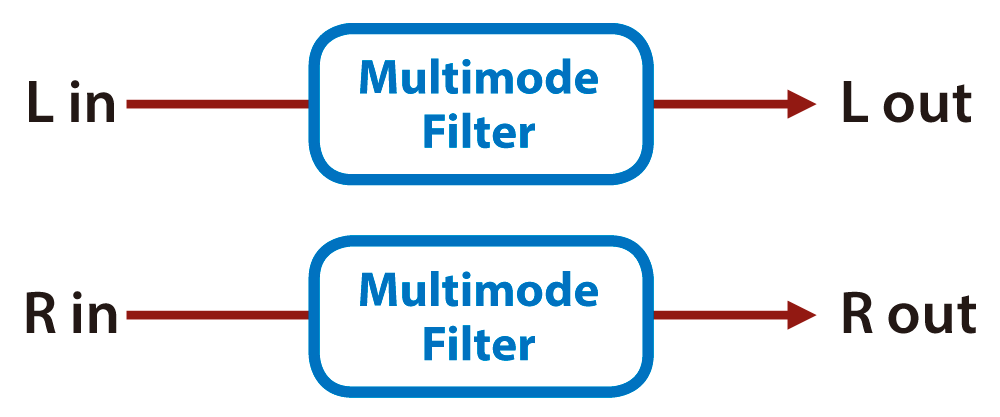

MM Filter (Multi-mode filter)
This is a filter that is adjusted for effective use in a DJ performance.
Parameter | Value | Explanation |
|---|---|---|
Type | LPF/HPF, LPF, HPF, BPF | Filter type LPF/HPF: The filter type is automatically switched according to the Filter Tone parameter value. |
Tone | 0–255 | Frequency at which the filter operates |
Color | 0–255 | Filter resonance level Higher values more strongly emphasize the region of the operating frequency. |
Slope | -12, -24, -36 [dB] | Amount of attenuation per octave -12 dB: Gentle -24 dB: Steep -36 dB: Extremely steep |
Gain | 0–+12 [dB] | Amount of boost for the filter output |
Level | 0–127 | Output Level |
