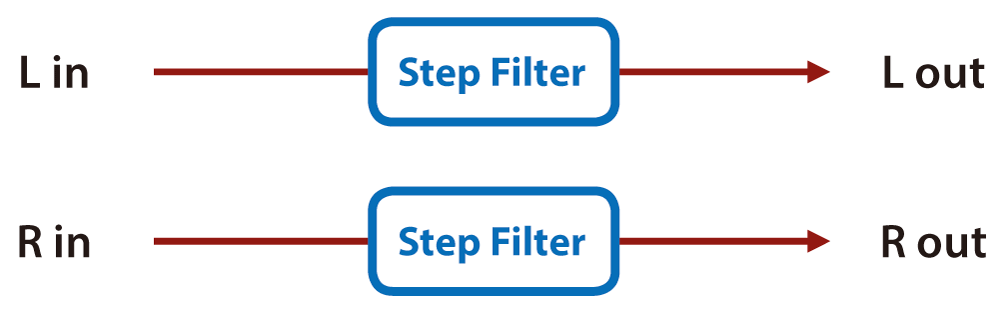

Step Filter
This is a filter whose cutoff frequency can be modulated in steps. You can specify the pattern by which the cutoff frequency will change.
Parameter | Value | Explanation |
|---|---|---|
Step 1–16 | 0–127 | Cutoff frequency at each step |
Rate Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
Rate | 0.05–10.00 [Hz] | Frequency of modulation
|
Rate Note | ||
Attack | 0–127 | Speed at which the cutoff frequency changes between steps |
Type | LPF, BPF, HPF, NOTCH | Frequency range that will pass through each filter LPF: Frequencies below the cutoff BPF: Frequencies in the region of the cutoff HPF: Frequencies above the cutoff NOTCH: Frequencies other than the region of the cutoff |
Slope | -12, -24, -36 [dB] | Amount of attenuation per octave -12 dB: Gentle -24 dB: Steep -36 dB: Extremely steep |
Reso | 0–127 | Filter resonance level Increasing this value will emphasize the region near the cutoff frequency. |
Gain | 0–+12 [dB] | Amount of boost for the filter output |
Level | 0–127 | Output Level |
