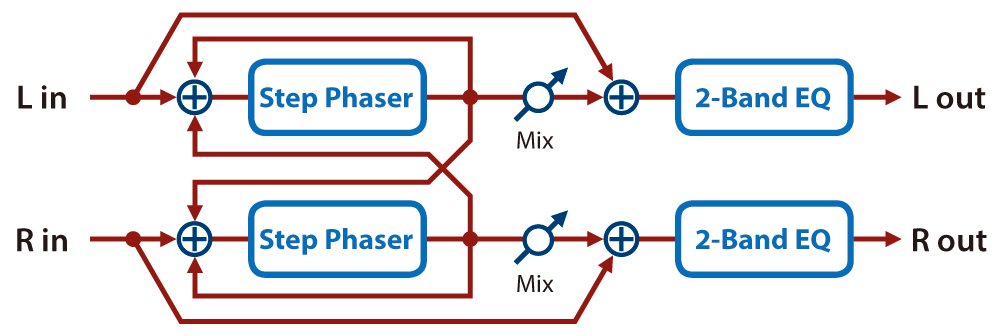

Step Phaser
This is a stereo phaser. The phaser effect will be varied gradually.
Parameter | Value | Explanation |
|---|---|---|
Mode | 4-STAGE, 8-STAGE, 12-STAGE | Number of stages in the phaser |
Manual | 0–127 | Adjusts the basic frequency from which the sound will be modulated. |
Rate Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
Rate | 0.05–10.00 [Hz] | Frequency of modulation |
Rate Note | ||
Depth | 0–127 | Depth of modulation |
Polarity | INVERSE, SYNCHRO | Selects whether the left and right phase of the modulation will be the same or the opposite. INVERSE: The left and right phase will be opposite. When using a mono source, this spreads the sound. SYNCHRO: The left and right phase will be the same. Select this when inputting a stereo source. |
Resonance | 0–127 | Amount of feedback |
Feedback | -98–+98 [%] | Adjusts the proportion of the phaser sound that is fed back into the effect. Negative (-) settings will invert the phase. |
S Rate Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
S.Rate | 0.10–20.00 [Hz] | Rate of the step-wise change in the phaser effect |
S.Rate Nt | ||
Mix | 0–127 | Level of the phase-shifted sound |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
