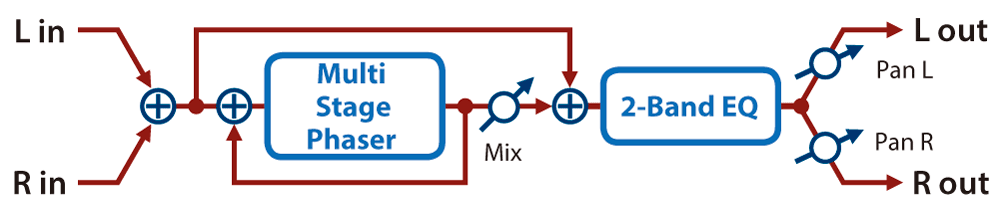

M StagePhsr (Multi stage phaser)
Extremely high settings of the phase difference produce a deep phaser effect.
Parameter | Value | Explanation |
|---|---|---|
Mode | 4-STAGE, 8-STAGE, 12-STAGE, 16-STAGE, 20-STAGE, 24-STAGE | Number of stages in the phaser |
Manual | 0–127 | Adjusts the basic frequency from which the sound will be modulated. |
Rate Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
Rate | 0.05–10.00 [Hz] | Frequency of modulation |
Rate Note | ||
Depth | 0–127 | Depth of modulation |
Resonance | 0–127 | Amount of feedback |
Mix | 0–127 | Level of the phase-shifted sound |
Pan | L64–63R | Stereo location of the output sound |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
