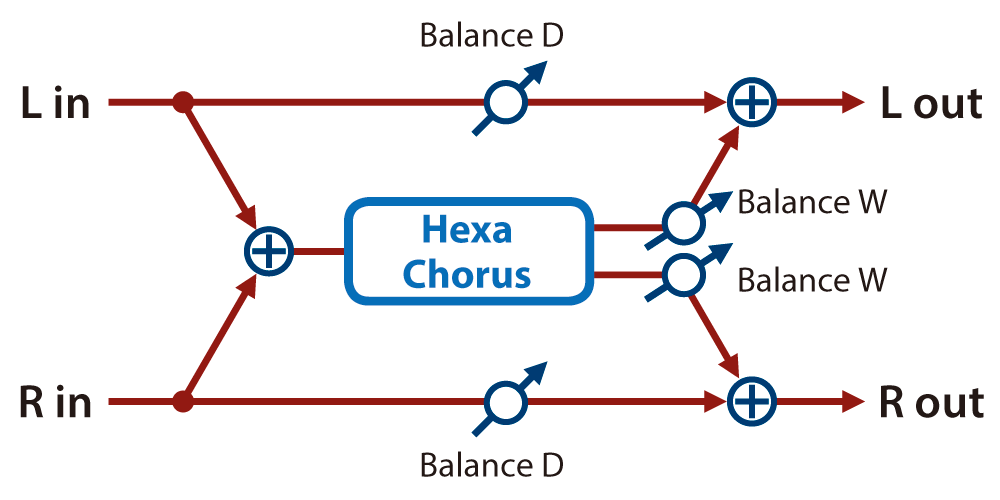

Hexa-Chorus
Uses a six-phase chorus (six layers of chorused sound) to give richness and spatial spread to the sound.
Parameter | Value | Explanation |
|---|---|---|
Pre Delay | 0.0–100 [ms] | Delay time from the direct sound until the chorus sound is heard |
Rate Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
Rate | 0.05–10.00 [Hz] | Frequency of modulation |
Rate Note | ||
Depth | 0–127 | Depth of modulation |
PreDly Dev | 0–20 | Adjusts the differences in Pre Delay between each chorus sound. |
Depth Dev | -20–+20 | Adjusts the difference in modulation depth between each chorus sound. |
Pan Dev | 0–20 | Adjusts the difference in stereo location between each chorus sound. 0: All chorus sounds will be in the center. 20: Each chorus sound will be spaced at 60 degree intervals relative to the center. |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the chorus sound (W) |
Level | 0–127 | Output Level |
