Space-D

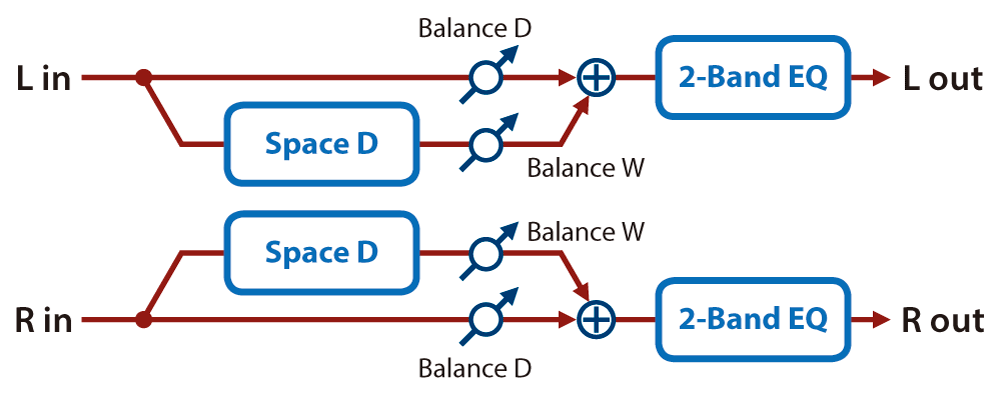

This is a multiple chorus that applies two-phase modulation in stereo.
It gives no impression of modulation, but produces a transparent chorus effect.
Parameter | Value | Explanation |
|---|---|---|
Pre Delay | 0.0–100 [ms] | Delay time from the direct sound until the chorus sound is heard |
Rate Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
Rate | 0.05–10.00 [Hz] | Frequency of modulation |
Rate Note | ||
Depth | 0–127 | Depth of modulation |
Phase | 0–180 [deg] | Spatial spread of the sound |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the chorus sound (W) |
Level | 0–127 | Output Level |
