SDD-320 (DIMENSION D)

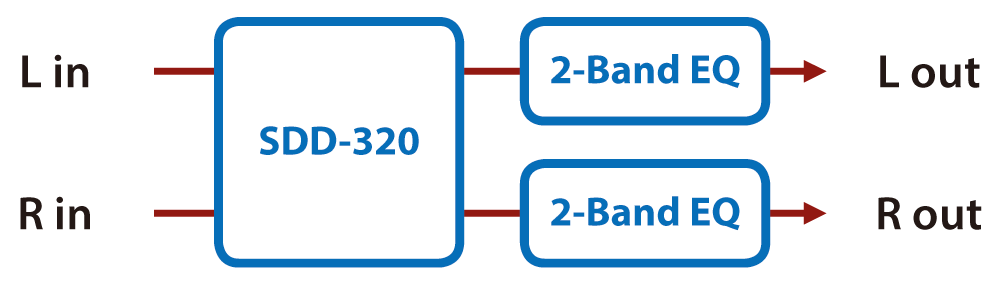

This models Roland’s DIMENSION D (SDD-320).
It provides a clear chorus sound.
Parameter | Value | Explanation |
|---|---|---|
Mode | 1, 2, 3, 4, 1+4, 2+4, 3+4 | Switches the mode. |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
