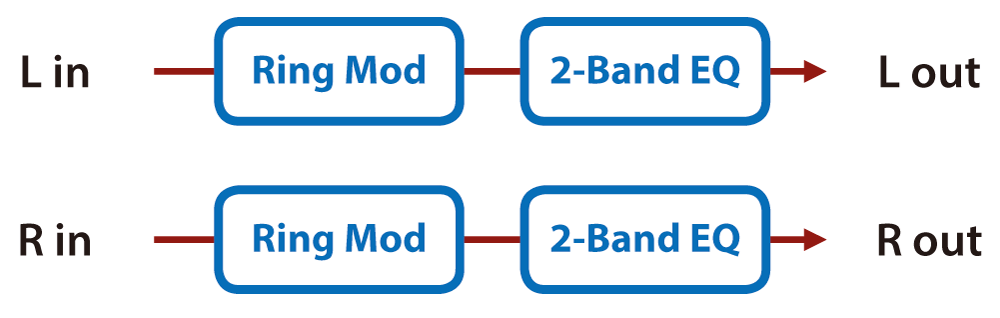

Ring Mod (Ring modulator)
This is an effect that applies amplitude modulation (AM) to the input signal, producing bell-like sounds.
You can also change the modulation frequency in response to changes in the volume of the sound sent into the effect.
Parameter | Value | Explanation |
|---|---|---|
Frequency | 0–127 | Adjusts the frequency at which modulation is applied. |
Sens | 0–127 | Adjusts the amount of frequency modulation applied. |
Polarity | UP, DOWN | Determines whether the frequency modulation moves towards higher frequencies or lower frequencies. UP: The filter will change toward a higher frequency. DOWN: The filter will change toward a lower frequency. |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the effect sound (W) |
Level | 0–127 | Output Level |
