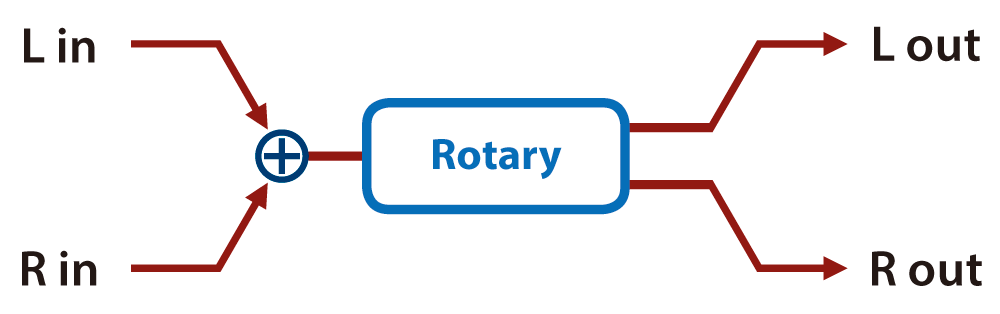

Rotary
This simulates a classic rotary speaker of the past.
Since the operation of the high-frequency and low-frequency rotors can be specified independently, the distinctive modulation can be reproduced realistically. This is most effective on organ patches.
Parameter | Value | Explanation |
|---|---|---|
Speed | SLOW, FAST | Simultaneously switch the rotational speed of the low frequency rotor and high frequency rotor. SLOW: Slows down the rotation to the Slow Rate. FAST: Speeds up the rotation to the Fast Rate. |
Wf Slow | 0.05–10.00 [Hz] | Slow speed (SLOW) of the low frequency rotor |
Wf Fast | 0.05–10.00 [Hz] | Fast speed (FAST) of the low frequency rotor |
Wf Accel | 0–15 | Adjusts the time it takes the low frequency rotor to reach the newly selected speed when switching from fast to slow (or slow to fast) speed. |
Wf Level | 0–127 | Volume of the low frequency rotor |
Tw Slow | 0.05–10.00 [Hz] | Settings of the high frequency rotor The parameters are the same as for the low frequency rotor.
|
Tw Fast | 0.05–10.00 [Hz] | |
Tw Accel | 0–15 | |
Tw Level | 0–127 | |
Separation | 0–127 | Spatial dispersion of the sound |
Level | 0–127 | Output Level |
