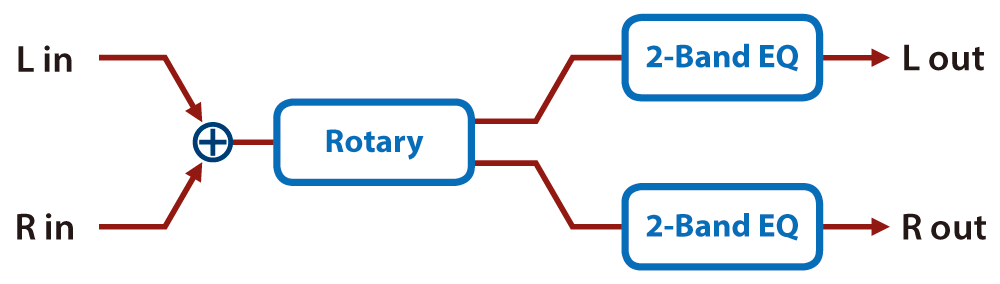

VK Rotary
This type provides modified response for the rotary speaker, with the low end boosted further.
This effect features the same specifications as the VK-7’s built-in rotary speaker.
Parameter | Value | Explanation |
|---|---|---|
Speed | SLOW, FAST | Rotational speed of the rotating speaker SLOW: Slow FAST: Fast |
Brake | OFF, ON | Rotary speaker brake on/off When this is turned on, the rotation will gradually stop. When it is turned off, the rotation will gradually resume. |
Wf Slow | 0.05–10.00 [Hz] | Low-speed rotation speed of the woofer |
Wf Fast | 0.05–10.00 [Hz] | High-speed rotation speed of the woofer |
Wf Trs Up | 0–127 | Adjusts the rate at which the woofer rotation speeds up when the rotation is switched from Slow to Fast. |
Wf Trs Dw | 0–127 | Adjusts the rate at which the woofer rotation speeds up when the rotation is switched from Fast to Slow. |
Wf Level | 0–127 | Volume of the woofer |
Tw Slow | 0.05–10.00 [Hz] | Settings of the tweeter The parameters are the same as for the woofer. |
Tw Fast | 0.05–10.00 [Hz] | |
Tw Trs Up | 0–127 | |
Tw Trs Dw | 0–127 | |
Tw Level | 0–127 | |
Spread | 0–10 | Sets the rotary speaker stereo image. |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
OD Switch | OFF, ON | Overdrive on/off |
OD Gain | 0–127 | Overdrive input level Higher values will increase the distortion. |
OD Drive | 0–127 | Degree of distortion |
OD Level | 0–127 | Volume of the overdrive |
