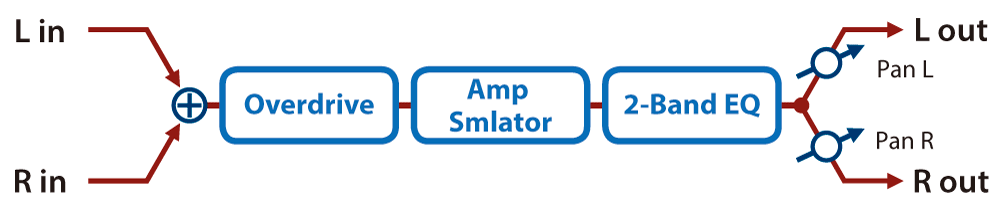

Overdrive
This is an overdrive that provides heavy distortion.
Parameter | Value | Explanation |
|---|---|---|
Drive | 0–127 | Degree of distortion Also changes the volume. |
Tone | 0–127 | Sound quality of the Overdrive effect |
Amp Switch | OFF, ON | Turns the Amp Simulator on/off. |
AmpType | SMALL, BUILT-IN, 2-STACK, 3-STACK | Type of guitar amp. SMALL: Small amp BUILT-IN: Single-unit type amp 2-STACK: Large double stack-type amp 3-STACK: Large triple stack-type amp |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Pan | L64–63R | Stereo location of the output sound |
Level | 0–127 | Output Level |
