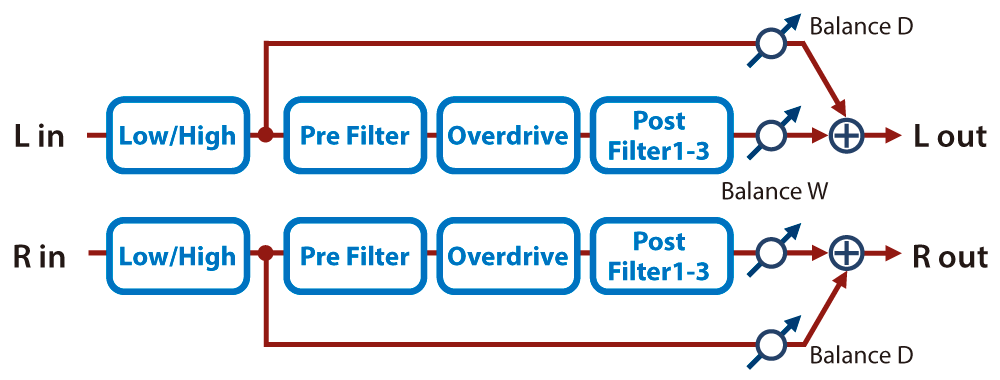

W Saturator (Warm saturator)
This is a variety of saturator, and is distinctive for its warmer sound.
Parameter | Value | Explanation |
|---|---|---|
LowFreq | 20–16000 [Hz] | Input filter (low range) Boosts/cuts the sound below the specified frequency. |
LowGain | -24.0–+24.0 [dB] | Input filter (low range) Amount of boost/cut |
Hi Slope | THRU, -12dB, -24dB | Amount of attenuation per octave THRU: No attenuation -12 dB: Gentle -24 dB: Steep |
Hi Freq | 20–16000 [Hz] | Input filter (high range) Boosts/cuts the sound above the specified frequency. |
Pre1 Type | THRU, LPF, HPF, LSV, HSV | Types of filter that precedes the distortion processing THRU: No filter is applied LPF: A filter that passes the sound below the specified frequency HPF: A filter that passes the sound above the specified frequency LSV: A filter that boosts/cuts the sound below the specified frequency HSV: A filter that boosts/cuts the sound above the specified frequency |
Pre1Freq | 20–16000 [Hz] | Frequency at which the pre-distortion filter operates |
Pre1Gain | -24.0–+24.0 [dB] | For the LSV/HSV types, the amount of boost/cut |
Drive | 0.0–48.0 [dB] | Strength of distortion |
Post1 Type | THRU, LPF, HPF, LSV, HSV | Type of filter 1 which follows the distortion processing |
Post1Frq | 20–16000 [Hz] | Frequency at which post-distortion filter 1 operates |
Post1Gain | -24.0–+24.0 [dB] | For the LSV/HSV types, the amount of boost/cut |
Post2 Type | THRU, LPF, HPF, LSV, HSV | Type of filter 2 which follows the distortion processing |
Post2Frq | 20–16000 [Hz] | Frequency at which post-distortion filter 2 operates |
Post2Gain | -24.0–+24.0 [dB] | For the LSV/HSV types, the amount of boost/cut |
Post3 Type | THRU, LPF, HPF, BPF, PKG | Type of filter 3 which follows the distortion processing THRU: No filter is applied LPF: A filter that passes the sound below the specified frequency HPF: A filter that passes the sound above the specified frequency BPF: A filter that passes only the specified frequency PKG: A filter that boosts/cuts the specified frequency |
Post3Frq | 20–16000 [Hz] | Frequency at which post-distortion filter 3 operates |
Post3Gain | -24.0–+24.0 [dB] | For the PKG type, the amount of boost/cut |
Post3 Q | 0.5–16.0 | Width of the frequency range affected by the filter |
Sense | -60.0–0.0 [dB] | Adjust this value so that the sound is not made louder when distortion is applied. |
PostGain | -48.0–+12.0 [dB] | Gain following distortion processing |
Balance | D100:0W–D0:100W | Volume balance between the dry sound (D) and effect sound (W) |
Level | 0–127 | Output Level |
