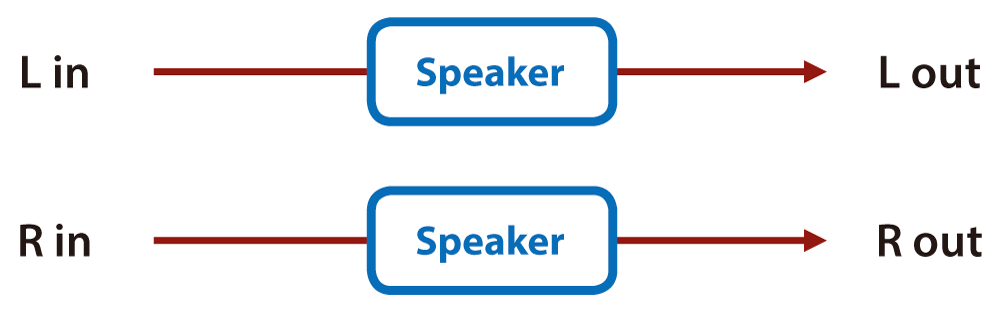

Speaker Sim (Speaker simulator)
Simulates the speaker type and mic settings used to record the speaker sound.
Parameter
| Value | Explanation | ||
|---|---|---|---|---|
Type | Cabinet | Diameter (in inches) and number of the speaker
| Microphone | |
SMALL 1 | small open-back enclosure | 10 | dynamic | |
SMALL 2 | small open-back enclosure | 10 | dynamic | |
MIDDLE | open back enclosure | 12 x 1 | dynamic | |
JC-120 | open back enclosure | 12 x 2 | dynamic | |
BUILT-IN 1 | open back enclosure | 12 x 2 | dynamic | |
BUILT-IN 2 | open back enclosure | 12 x 2 | condenser | |
BUILT-IN 3 | open back enclosure | 12 x 2 | condenser | |
BUILT-IN 4 | open back enclosure | 12 x 2 | condenser | |
BUILT-IN 5 | open back enclosure | 12 x 2 | condenser | |
BG STACK 1 | sealed enclosure | 12 x 2 | condenser | |
BG STACK 2 | large sealed enclosure | 12 x 2 | condenser | |
MS STACK 1 | large sealed enclosure | 12 x 4 | condenser | |
MS STACK 2 | large sealed enclosure | 12 x 4 | condenser | |
METAL STACK | large double stack | 12 x 4 | condenser | |
2-STACK | large double stack | 12 x 4 | condenser | |
3-STACK | large triple stack | 12 x 4 | condenser | |
Mic Setting | 1–3 | Adjusts the location of the microphone that is recording the sound of the speaker. This can be adjusted in three steps, with the microphone becoming more distant in the order of 1, 2, and 3. | ||
Mic Level | 0–127 | Volume of the microphone | ||
Direct Lv | 0–127 | Volume of the direct sound | ||
Level | 0–127 | Output Level | ||
