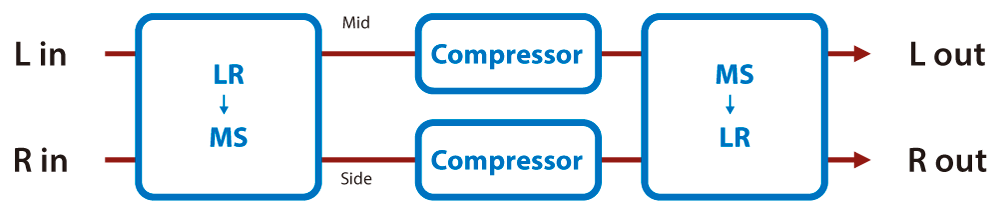

M/S Comp (Mid-side compressor)
This effect allows the left/right signals that have similar phase to be adjusted to a different sense of volume than the left/right signals that have different phase.
Parameter | Value | Explanation |
|---|---|---|
M Comp Sw | OFF, ON | Switches whether to adjust the sense of volume for left/right input signals whose phase is similar (in phase). |
M Attack | 0–124 | Sets the speed at which compression starts |
M Release | 0–124 | Adjusts the time after the signal volume falls below the M Thres Level until compression is no longer applied. |
M Thres | -60–0 [dB] | Adjusts the volume at which compression begins |
M Knee | 0–30 [dB] | This is a function that smooths the onset of compression from the uncompressed state. It gradually applies compression starting earlier than M Thres. Higher values produce a smoother transition. |
M Ratio | 1:1, 1.5:1, 2:1, 4:1, 16:1, INF:1 | Compression ratio |
M Gain | 0–+18 [dB] | Level of the output sound |
S Comp Sw | OFF, ON | Switches whether to adjust the sense of volume of left/right input signals whose signals are considerably out of phase. |
S Attack | 0–124 | Sets the speed at which compression starts |
S Release | 0–124 | Adjusts the time after the signal volume falls below the S Thres Level until compression is no longer applied. |
S Thres | -60–0 [dB] | Adjusts the volume at which compression begins |
S Knee | 0–30 [dB] | This is a function that smooths the onset of compression from the uncompressed state. It gradually applies compression starting earlier than S Thres. Higher values produce a smoother transition. |
S Ratio | 1:1, 1.5:1, 2:1, 4:1, 16:1, INF:1 | Compression ratio |
S Gain | 0–+18 [dB] | Level of the output sound |
Level | 0–127 | Output Level |
