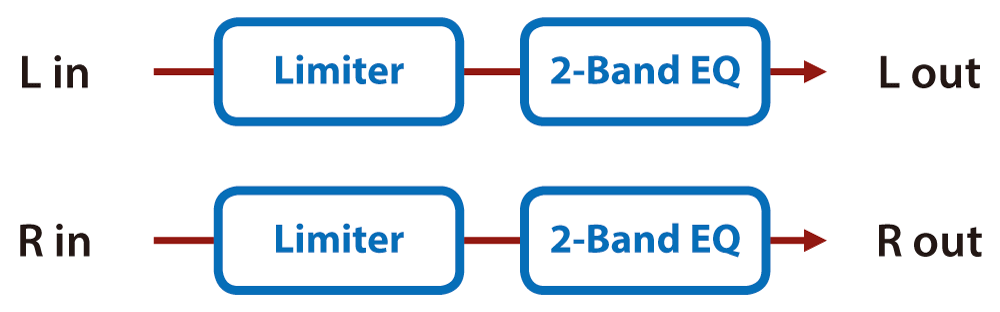

Limiter
Compresses signals that exceed a specified volume level, preventing distortion from occurring.
Parameter | Value | Explanation |
|---|---|---|
Release | 0–127 | Adjusts the time after the signal volume falls below the Threshold Level until compression is no longer applied. |
Threshold | 0–127 | Adjusts the volume at which compression begins |
Ratio | 1.5:1, 2:1, 4:1, 100:1 | Compression ratio |
Post Gain | 0–+18 [dB] | Level of the output sound |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
