Delay
This is a stereo delay.

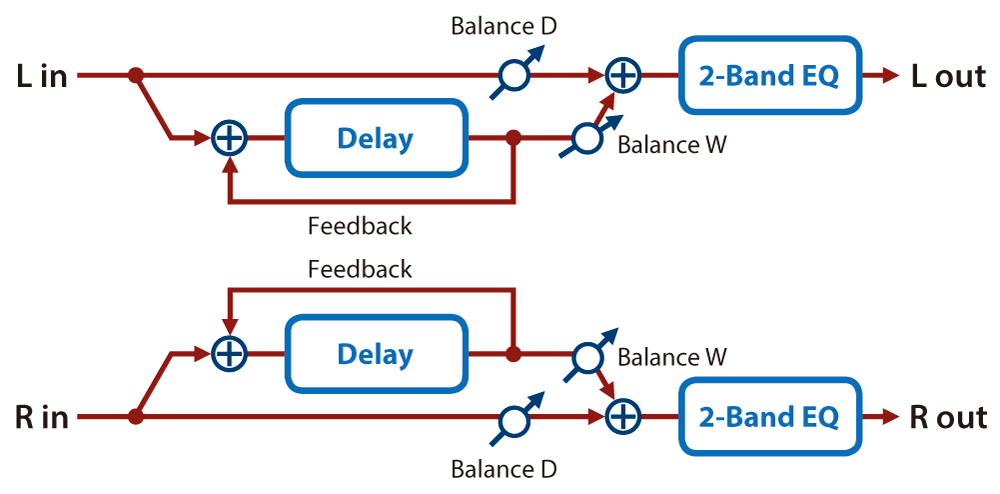

When Feedback Mode is NORMAL:

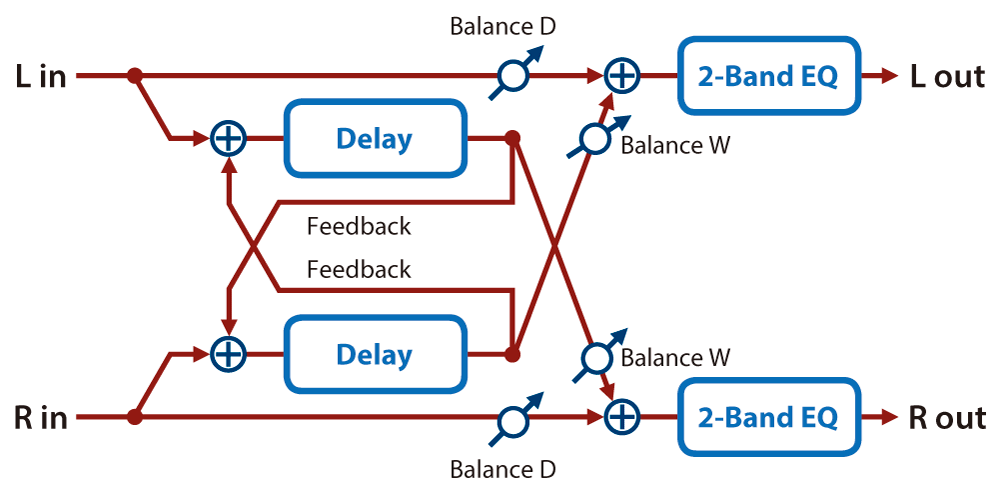

When Feedback Mode is CROSS:
Parameter | Value | Explanation |
|---|---|---|
Dly L Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
DL.Time | 1–1300 | Delay time from the direct sound until the left delay sound is heard |
DLTime Nt | ||
Dly R Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
DR.Time | 1–1300 | Delay time from the direct sound until the right delay sound is heard |
DRTime Nt | ||
Phase L | NORMAL, INVERSE | Phase of left and right delay sound NORMAL: Non-inverted INVERT: Inverted |
Phase R | NORMAL, INVERSE | |
Fbk Mode | NORMAL, CROSS | The input where the delay sound is returned (see the algorithm diagram) |
Feedback | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
HF Damp | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect is filtered out. If you don’t want to filter out any high frequencies, set this parameter to BYPASS. |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the delay sound (W) |
Level | 0–127 | Output Level |
