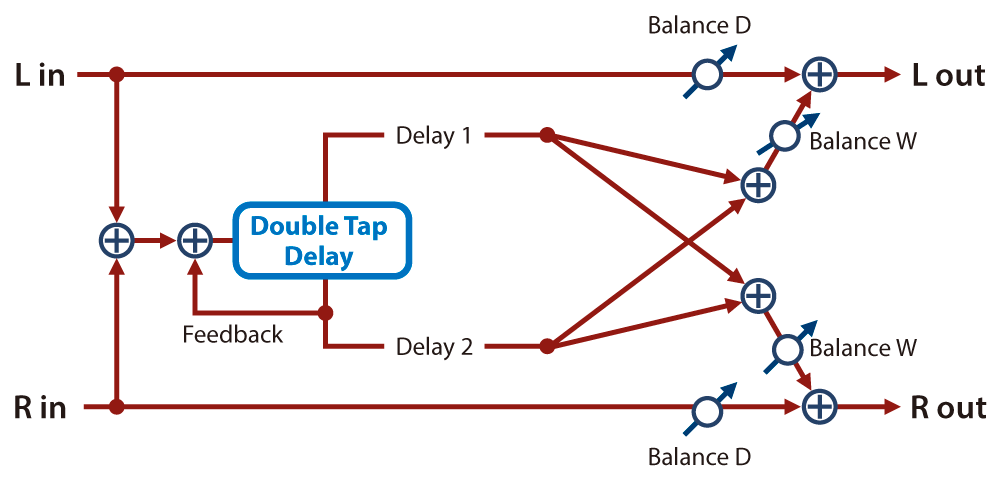

2Tap PanDly (2-tap pan delay)
Parameter | Value | Explanation |
|---|---|---|
Delay Sync | OFF, ON | If this is ON, the delay synchronizes with the tempo. |
D.Time (ms) | 1–2600 | Delay time from the direct sound until the second delay sound is heard |
D.Time (Nt) | ||
Delay Fbk | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
Dly HF | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect is filtered out. If you don’t want to filter out any high frequencies, set this parameter to BYPASS. |
Dly1 Pan | L64–63R | Adjusts the stereo location of delay 1. |
Dly2 Pan | L64–63R | Adjusts the stereo location of delay 2. |
Dly1 Lv | 0–127 | Adjusts the volume of delay 1. |
Dly2 Lv | 0–127 | Adjusts the volume of delay 2. |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Adjusts the volume balance between the sound that is sent through the delay (W) and the sound that is not sent through the delay (D). |
Level | 0–127 | Output Level |
