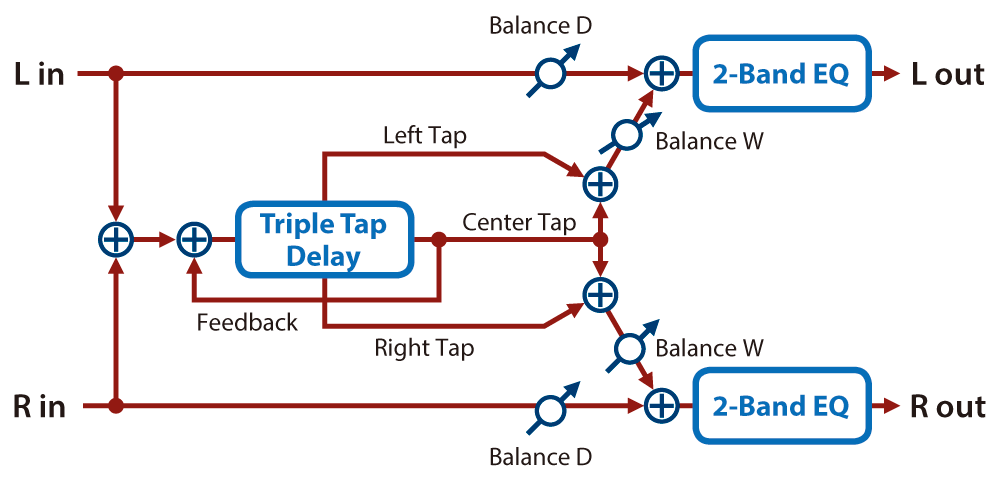

3Tap PanDly (3-tap pan delay)
Produces three delay sounds; center, left and right.
Parameter | Value | Explanation |
|---|---|---|
Dly L Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
DL.Time | 1–2600 | Delay time from the direct sound until the left delay sound is heard |
DLTime Nt | ||
Dly R Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
DR.Time | 1–2600 | Delay time from the direct sound until the right delay sound is heard |
DRTime Nt | ||
Dly C Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
DC.Time | 1–2600 | Delay time from the direct sound until the center delay sound is heard
|
DCTime Nt | ||
C Feedback | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
HF Damp | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect is filtered out. If you don’t want to filter out any high frequencies, set this parameter to BYPASS. |
Left Lv | 0–127 | Volume of each delay sound |
Right Lv | 0–127 | |
Center Lv | 0–127 | |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the delay sound (W) |
Level | 0–127 | Output Level |
