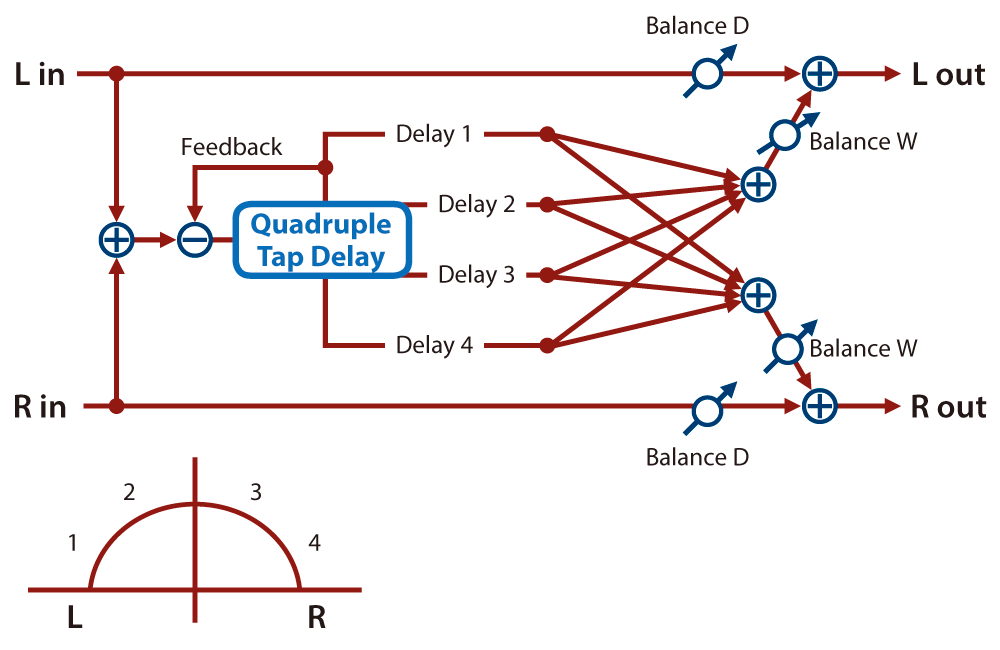

4Tap PanDly (4-tap pan delay)
This effect has four delays.
Parameter | Value | Explanation |
|---|---|---|
Dly1 Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D1.Time | 1–2600 | Delay time from the direct sound until delay 1 sound is heard |
D1Time Nt | ||
Dly2 Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D2.Time | 1–2600 | Delay time from the direct sound until delay 2 sound is heard |
D2Time Nt | ||
Dly3 Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D3.Time | 1–2600 | Delay time from the direct sound until delay 3 sound is heard |
D3Time Nt | ||
Dly4 Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D4.Time | 1–2600 | Delay time from the direct sound until delay 4 sound is heard |
D4Time Nt | ||
Dly1 Fbk | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
HF Damp | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect is filtered out. If you don’t want to filter out any high frequencies, set this parameter to BYPASS. |
Dly1 Lv | 0–127 | Volume of each delay |
Dly2 Lv | 0–127 | |
Dly3 Lv | 0–127 | |
Dly4 Lv | 0–127 | |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the delay sound (W) |
Level | 0–127 | Output Level |
