Reverse Dly (Reverse delay)

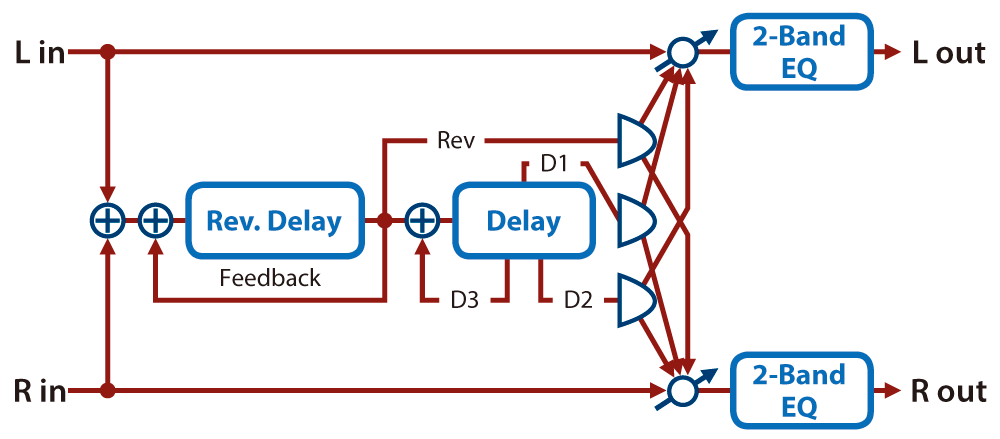

This is a reverse delay that adds a reversed and delayed sound to the input sound.
A tap delay is connected immediately after the reverse delay.
Parameter | Value | Explanation |
|---|---|---|
Threshold | 0–127 | Volume at which the reverse delay will begin to be applied |
RDly Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
RD.Time | 1–1300 | Delay time from when sound is input into the reverse delay until the delay sound is heard |
RD.Time Nt | ||
RDly Fbk | -98–+98 [%] | Proportion of the delay sound that is to be returned to the input of the reverse delay. Negative (-) settings will invert the phase. |
RDly HF | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Frequency at which the high-frequency content of the reverse-delayed sound will be cut. If you do not want to cut the high frequencies, set this parameter to BYPASS. |
RDly Pan | L64–63R | Panning of the reverse delay sound |
RDly Level | 0–127 | Volume of the reverse delay sound |
Dly1 Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D1.Time | 1–1300 | Delay time from when sound is input into the tap delay until the delay sound is heard |
D1Time Nt | ||
Dly2 Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D2.Time | 1–1300 | Delay time from when sound is input into the tap delay until the delay sound is heard |
D2Time Nt | ||
Dly3 Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D3.Time | 1–1300 | Delay time from when sound is input into the tap delay until the delay sound is heard |
D3Time Nt | ||
Dly3 Fbk | -98–+98 [%] | Proportion of the delay sound that is to be returned to the input of the reverse delay. Negative (-) settings will invert the phase. |
Dly HF | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Frequency at which the hi-frequency content of the tap delay sound will be cut. If you do not want to cut the high frequencies, set this parameter to BYPASS. |
Dly1 Pan | L64–63R | Panning of the tap delay sounds |
Dly2 Pan | L64–63R | |
Dly1 Lv | 0–127 | Volume of the tap delay sounds |
Dly2 Lv | 0–127 | |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the delay sound (W) |
Level | 0–127 | Output Level |
