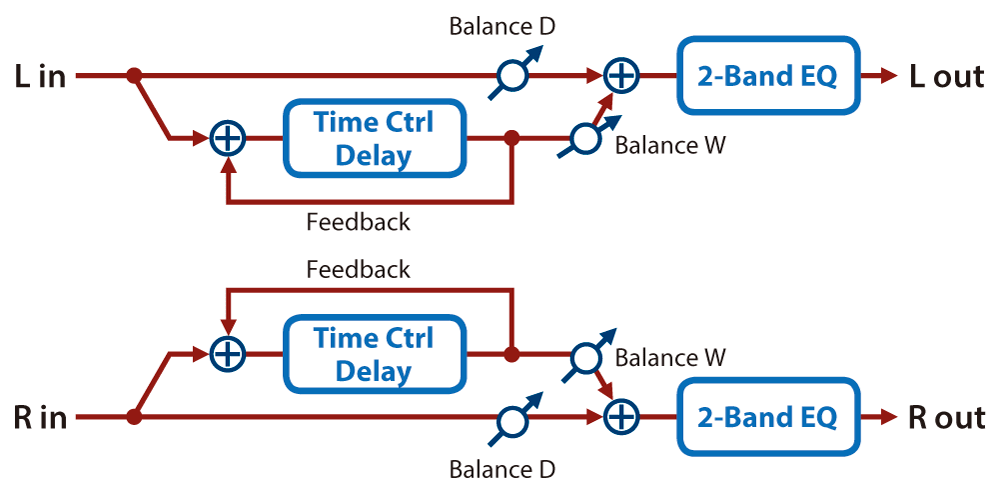

TimeCtrlDly (Time control delay)
This is a delay in which the delay time can be varied smoothly.
Parameter | Value | Explanation |
|---|---|---|
Delay Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D.Time | 1–1300 | Delay time from the direct sound until the delay sound is heard |
D.Time Nt | ||
Acceleration | 0–15 | Speed at which the current delay time changes to the specified delay time when you change the delay time. This affects the speed of pitch change as well as the delay time. |
Feedback | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
HF Damp | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect is filtered out. If you don’t want to filter out any high frequencies, set this parameter to BYPASS. |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the delay sound (W) |
Level | 0–127 | Output Level |
