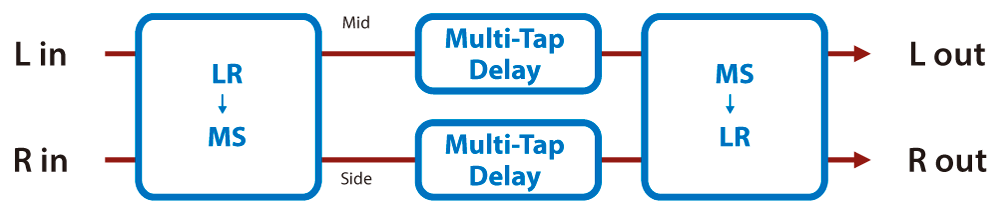

M/S Delay (Mid-side delay)
This effect applies different amounts of delay to left/right signals of similar phase and differing phase.
Parameter | Value | Explanation |
|---|---|---|
MD Level | 0–127 | Delay volume of left/right input signals whose phase is similar (in phase) |
MD Mode | 2TAP, 3TAP, 4TAP | Delay divisions for the input signals whose left/right phase is similar (in phase) |
MD Tm Sync | OFF, ON | If this is ON, the delay synchronizes with the tempo. |
MD.Time | 1–1300 | Delay time from the direct sound until the delay sound is heard |
MDTime Nt | ||
MD Feedback | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
MD HFDamp | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect is filtered out. If you don’t want to filter out any high frequencies, set this parameter to BYPASS. |
MD1 Pan | L64–63R | Panning of the first delay sound |
MD2 Pan | L64–63R | Panning of the second delay sound |
MD3 Pan | L64–63R | Panning of the third delay sound |
MD4 Pan | L64–63R | Panning of the fourth delay sound |
SD Level | 0–127 | Delay volume of left/right input signals whose signals are considerably out of phase. |
SD Mode | 2TAP, 3TAP, 4TAP | Delay divisions for the left/right input signals whose signals are considerably out of phase. |
SD Tm Sync | OFF, ON | If this is ON, the delay synchronizes with the tempo. |
SD Time | 1–1300 | Delay time from the direct sound until the delay sound is heard |
SDTime Nt | ||
SD Feedback | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
SD HFDamp | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect is filtered out. If you don’t want to filter out any high frequencies, set this parameter to BYPASS. |
SD1 Pan | L64–63R | Panning of the first delay sound |
SD2 Pan | L64–63R | Panning of the second delay sound |
SD3 Pan | L64–63R | Panning of the third delay sound |
SD4 Pan | L64–63R | Panning of the fourth delay sound |
Level | 0–127 | Output Level |
