PitchShiftr (Pitch shifter)

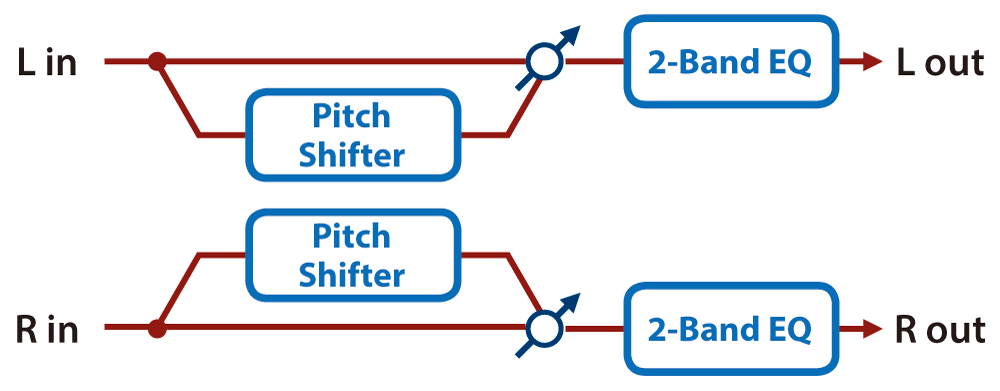

A stereo pitch shifter.
Parameter | Value | Explanation |
|---|---|---|
Coarse | -24–+12 [sem] | Adjusts the pitch of the pitch shifted sound in semitone steps. |
Fine | -100–+100 | Adjusts the pitch of the pitch shifted sound in 2-cent steps. |
Delay Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D.Time | 1–1300 | Delay time from the direct sound until the pitch shifted sound is heard |
D.Time Nt | ||
Feedback | -98–+98 [%] | Adjusts the proportion of the pitch shifted sound that is fed back into the effect. Negative (-) settings will invert the phase. |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Balance | D100:0W–D0:100W | Volume balance between the direct sound (D) and the pitch shifted sound (W) |
Level | 0–127 | Output Level |
