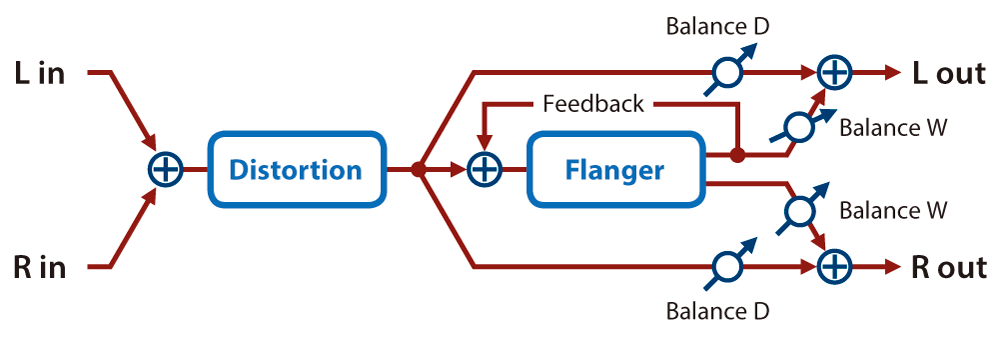

DS -> Flanger (Distortion -> Flanger)
Parameter | Value | Explanation |
|---|---|---|
Dist Drive | 0–127 | Degree of distortion Also changes the volume. |
Dist Pan | L64–63R | Stereo location of the distortion sound |
Flg PreDly | 0.0–100 [ms] | Delay time from the direct sound until the flanger sound is heard |
Flg Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
F.Rate | 0.05–10.00 [Hz] | Frequency of modulation |
F.Rate Nt | ||
Flg Depth | 0–127 | Depth of modulation |
Flg Fbk | -98–+98 [%] | Adjusts the proportion of the flanger sound that is fed back into the effect. Negative (-) settings will invert the phase. |
Flg Bal | D100:0W–D0:100W | Adjusts the volume balance between the sound that is sent through the flanger (W) and the sound that is not sent through the flanger (D). |
Level | 0–127 | Output Level |
