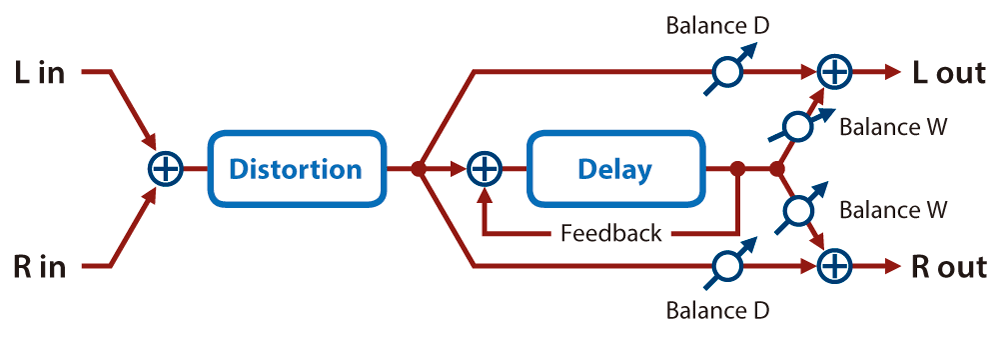

DS -> Delay (Distortion -> Delay)
Parameter | Value | Explanation |
|---|---|---|
Dist Drive | 0–127 | Degree of distortion Also changes the volume. |
Dist Pan | L64–63R | Stereo location of the distortion sound |
Delay Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D.Time | 1–2600 | Delay time from the direct sound until the delay sound is heard |
D.Time Nt | ||
Delay Fbk | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
Dly HF | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Adjusts the frequency above which sound fed back to the effect will be cut. If you do not want to cut the high frequencies, set this parameter to BYPASS. |
Dly Bal | D100:0W–D0:100W | Adjusts the volume balance between the sound that is sent through the delay (W) and the sound that is not sent through the delay (D). |
Level | 0–127 | Output Level |
