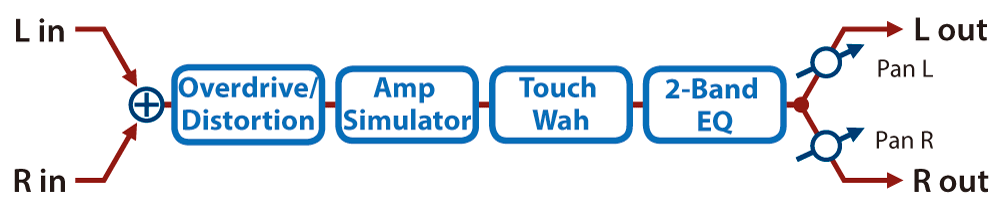

OD/DS -> T. Wah (Overdrive/Distortion -> Touch Wah)
Parameter | Value | Explanation |
|---|---|---|
Drive Switch | OFF, ON | Turns overdrive/distortion on/off |
D.Type | OVERDRIVE, DISTORTION | Type of distortion |
Drive | 0–127 | Degree of distortion Also changes the volume. |
Tone | 0–127 | Sound quality of the Overdrive effect |
Amp Switch | OFF, ON | Turns the Amp Simulator on/off. |
AmpType | SMALL, BUILT-IN, 2-STACK, 3-STACK | Type of guitar amp SMALL: Small amp BUILT-IN: Single-unit type amp 2-STACK: Large double stack-type amp 3-STACK: Large triple stack-type amp |
TWah Switch | OFF, ON | Wah on/off |
TWah Mode | LPF, BPF | Filter type LPF: The wah effect will be applied over a wide frequency range. BPF: The wah effect will be applied over a narrow frequency range. |
TWah Polar | DOWN, UP | Direction in which the filter will move DOWN: The filter will change toward a lower frequency. UP: The filter will change toward a higher frequency. |
TWah Sens | 0–127 | Sensitivity with which the filter is modified |
TWah Manual | 0–127 | Center frequency at which the wah effect is applied |
TWah Peak | 0–127 | Width of the frequency region at which the wah effect is applied. Increasing this value will make the frequency region narrower. |
TWah Bal | D100:0W–D0:100W | Adjusts the volume balance between the sound that is sent through the wah (W) and the sound that is not sent through the wah (D). |
Low Gain | -15–+15 [dB] | Amount of boost/cut for the low-frequency range |
High Gain | -15–+15 [dB] | Amount of boost/cut for the high-frequency range |
Level | 0–127 | Output Level |
