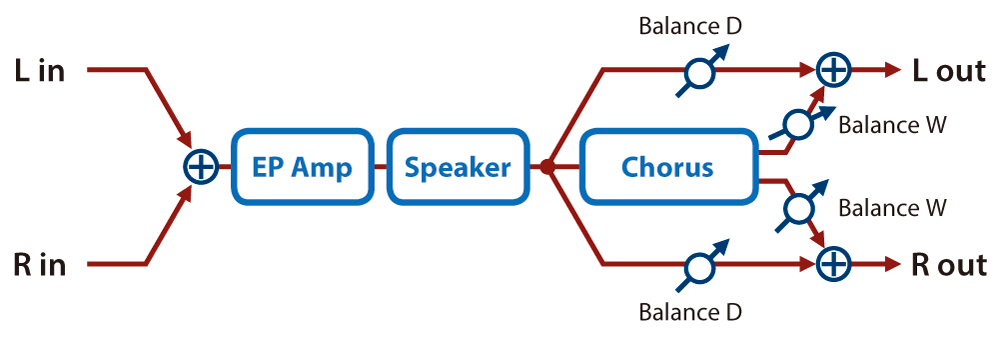

EP -> Chorus (EP Amp Simulator -> Chorus)
Parameter | Value | Explanation |
|---|---|---|
Type |
| Type of amp |
OLDCASE | A standard electric piano sound of the early 70s | |
NEWCASE | A standard electric piano sound of the late 70s and early 80s | |
Bass | -50–+50 | Amount of low-frequency boost/cut |
Treble | -50–+50 | Amount of high-frequency boost/cut |
Cho Switch | OFF, ON | Chorus on/off |
Cho PreDly | 0.0–100 [ms] | Delay time from the direct sound until the chorus sound is heard |
Cho Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
C.Rate | 0.05–10.00 [Hz] | Frequency of modulation |
C.Rate Nt | ||
Cho Depth | 0–127 | Depth of modulation |
Cho Bal | D100:0W–D0:100W | Adjusts the volume balance between the sound that is sent through the chorus (W) and the sound that is not sent through the chorus (D). |
Sp Type | LINE, OLD, NEW, WURLY, TWIN | Type of speaker If LINE is selected, the sound will not be sent through the speaker simulation. |
OD Switch | OFF, ON | Overdrive on/off |
OD Gain | 0–127 | Overdrive input level |
OD Drive | 0–127 | Degree of distortion Also changes the volume. |
Level | 0–127 | Output Level |
