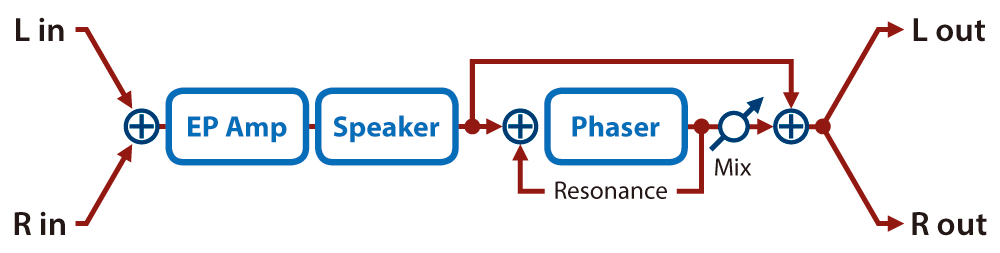

EP -> Phaser (EP Amp Simulator -> Phaser)
Parameter | Value | Explanation |
|---|---|---|
Type |
| Type of amp |
OLDCASE | A standard electric piano sound of the early 70s | |
NEWCASE | A standard electric piano sound of the late 70s and early 80s | |
Bass | -50–+50 | Amount of low-frequency boost/cut |
Treble | -50–+50 | Amount of high-frequency boost/cut |
Phs Switch | OFF, ON | Phaser on/off |
Phs Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
P. Rate | 0.05–10.00 [Hz] | Frequency of modulation |
P.Rate Nt | ||
Phs Manual | 0–127 | Adjusts the basic frequency from which the sound will be modulated. |
Phs Depth | 0–127 | Depth of modulation |
Phs Reso | 0–127 | Amount of feedback |
Phs Mix | 0–127 | Level of the phase-shifted sound |
Sp Type | LINE, OLD, NEW, WURLY, TWIN | Type of speaker If LINE is selected, the sound will not be sent through the speaker simulation. |
OD Switch | OFF, ON | Overdrive on/off |
OD Gain | 0–127 | Overdrive input level |
OD Drive | 0–127 | Degree of distortion Also changes the volume. |
Level | 0–127 | Output Level |
