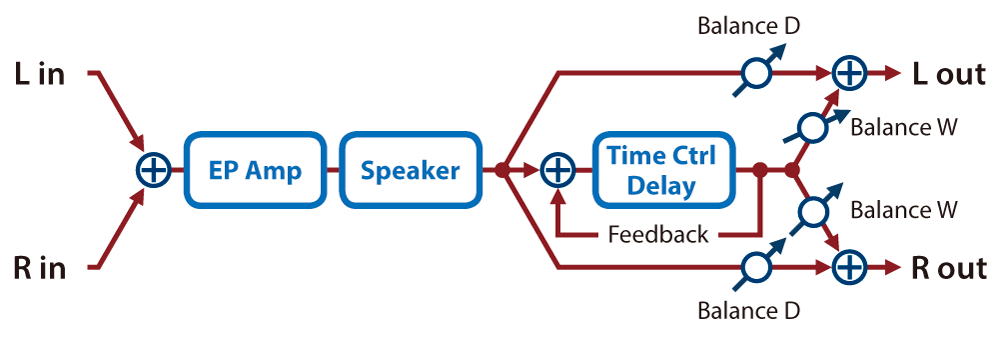

EP -> Delay (EP Amp Simulator -> Delay)
Parameter | Value | Explanation |
|---|---|---|
Type |
| Type of amp |
OLDCASE | A standard electric piano sound of the early 70s | |
NEWCASE | A standard electric piano sound of the late 70s and early 80s | |
Bass | -50–+50 | Amount of low-frequency boost/cut |
Treble | -50–+50 | Amount of high-frequency boost/cut |
Dly Switch | OFF, ON | Delay on/off |
Delay Sync | OFF, ON | If this is ON, the rate synchronizes with the tempo of the rhythm. |
D.Time | 1–1300 | Delay time from the direct sound until the delay sound is heard |
D.Time Nt | ||
Dly Accel | 0–15 | Speed at which the current delay time changes to the specified delay time when you change the delay time. This affects the speed of pitch change as well as the delay time. |
Delay Fbk | -98–+98 [%] | Adjusts the proportion of the delay sound that is fed back into the effect. Negative (-) settings will invert the phase. |
Dly HF | 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, BYPASS [Hz] | Frequency at which the high-frequency portion of the delay sound will be cut. If you do not want to cut the high frequencies, set this parameter to BYPASS. |
Dly Bal | D100:0W–D0:100W | Adjusts the volume balance between the sound that is sent through the delay (W) and the sound that is not sent through the delay (D). |
Sp Type | LINE, OLD, NEW, WURLY, TWIN | Type of speaker If LINE is selected, the sound will not be sent through the speaker simulation. |
OD Switch | OFF, ON | Overdrive on/off |
OD Gain | 0–127 | Overdrive input level |
OD Drive | 0–127 | Degree of distortion Also changes the volume. |
Level | 0–127 | Output Level |
