Importing patterns

You can import pattern data from the SP-404SX/SP-404A or SMF data (.mid) from your computer into the SP-404MK2 as pattern data (import).

MEMO

The following file types are supported for import.

  1. SP-404MK2 pattern data (.bin)
  2. SP-404SX/SP-404A pattern data (.bin) that meets the following conditions
  3. Length: 1, 2, 4, 8, 16, 32, 64
  4. SMF data created using a DAW or similar application/tool that meets the following conditions
  5. Format: 0
  6. TPQN: 480 or less
  7. Length: 1, 2, 4, 8, 16, 32, 64
  8. Max recordable note: 24,000

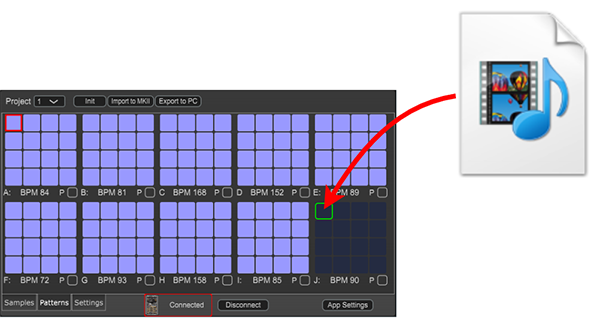

  1. Drag and drop the pattern data from your computer to an empty pad on the SP-404MK2 App.
  2. The popup message “Working...” is shown. If you decide to cancel the import, click “Cancel”.

  4. CAUTION

    Never turn off the power or disconnect the SP-404MK2 while the screen indicates “Working...”.

    When you drag and drop pattern data to a pad that already contains an assigned pattern, the data is overwritten. Use caution, as this deletes the previous pattern.

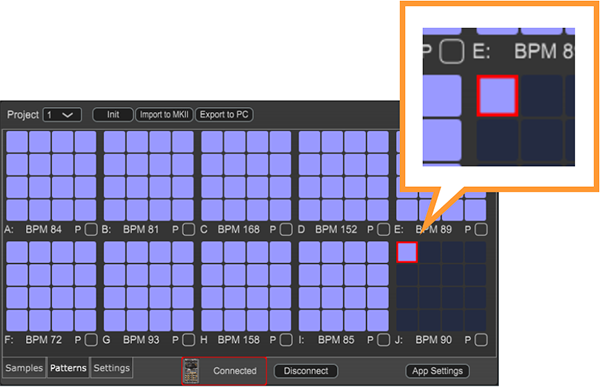

  5. When the import is finished, the pad of the imported pattern turns blue.
