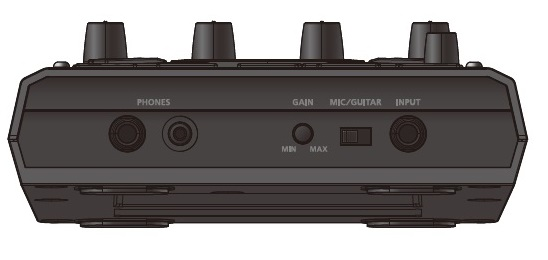

Front panel

  1. PHONES jack
  2. Connect your headphones or earphones here.
  3. [GAIN] knob
  4. Adjusts the input level of the device connected to the INPUT jack.
  5. [MIC/GUITAR] switch
  6. Switches the input impedance to match the device that’s connected to the INPUT jack. When connecting a high-impedance instrument (such as a guitar or bass guitar), flip the switch to the right (towards the INPUT jack).
  7. INPUT jack
  8. Connect an external device or instrument such as a microphone or a guitar here.
  10. INPUT jack pin arrangement
