Example: settings for the VH-10

MEMO

Refer to the owner’s manual of each product for how to adjust the offset of other V-hi-hats, such as the VH-14D.

  1. With the hi-hat completely separated from the motion sensor unit, turn the unit on.
  3. Loosen the clutch screw of the VH-10 so that the hi-hat rests naturally on the motion sensor unit.
  4. Press the [MENU] button.
  5. Use the cursor buttons to select “SYSTEM” Ó “TRIGGER”, and press the [ENTER] button.
  6. Press the [F4] (HI-HAT) button.

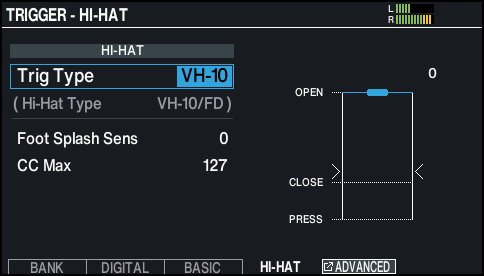

  7. The TRIGGER - HI-HAT screen appears.
  9. Use the dial to set the Trig Type to “VH-10”.
  10. While reading the meter displayed on the right side of the screen, adjust the offset with the VH-10’s offset adjustment screw.
  11. Adjust the offset so that the Ë Í marks appear on the meter.
  14. Tighten the clutch screw at a position where the hi-hat sways naturally when struck.
  15. Press the [KIT] button to return to the KIT screen.
  16. Make detailed adjustments to the parameters as necessary.
  17. Ø“Data List” (Roland website)
