Configuring the routing for USB audio (ROUTING)
This shows you how to configure the routing for the USB audio input/output.
Use this to directly input the sound from your computer to the pads of the V51, or to limit the sounds sent from the V51 to your computer.
The standard setting is “NORMAL”.
MEMO
This is enabled when the Driver Mode is “VENDOR”.

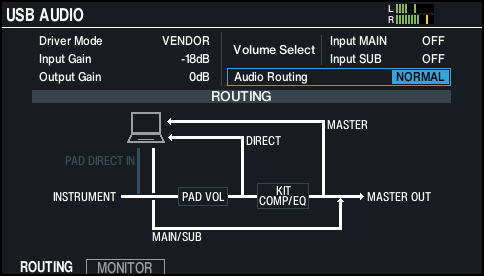

NORMAL
V51 Ó computer: MASTER OUT, DIRECT OUT 1, 2, direct output of each pad
Computer Ó V51: MAIN, SUB

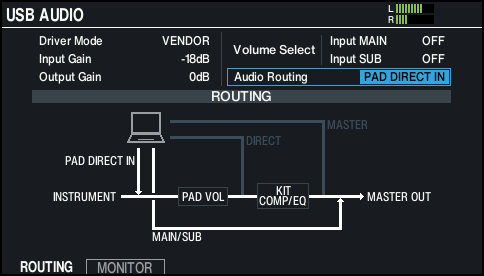

PAD DIRECT IN
V51 Ó computer: All USB audio output from the V51 is muted.
Computer Ó V51: MAIN, SUB, direct input to each pad

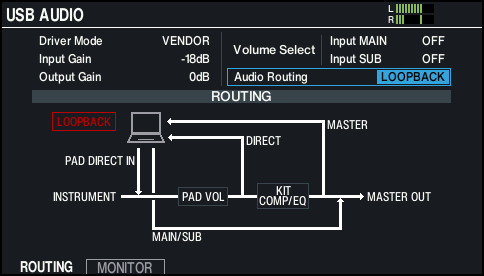

LOOPBACK
V51 Ó computer: MASTER OUT, DIRECT OUT 1, 2, direct output of each pad
Computer Ó V51: MAIN, SUB, direct input to each pad
- A dialog box appears when you use the “LOOPBACK” setting.
NOTE
Use caution with the LOOPBACK setting, as the USB AUDIO input and output may be inadvertently connected depending on the settings of your computer, the DAW to which you’re connecting or the V51. This may result in a loud noise (loopback).
Audio routing I/O chart
| Audio Routing | ||
|---|---|---|---|
NORMAL | PAD DIRECT IN | LOOPBACK | |
V51 Ó computer | |||
MASTER OUT | À | Muted | À |
DIRECT OUT | À | Muted | À |
Direct output of each pad | À | Muted | À |
Computer Ó V51 | |||
INPUT MAIN/SUB | À | À | À |
PAD DIRECT IN | Muted | À | À |
