Adjusting the tonal character of each pad (PAD EQ)

Here’s how to adjust the tonal character (pad equalizer) for each pad.

ØFor details on the parameters that can be edited, refer to “Data List” (Roland website).

  1. Press the [KIT EDIT] button.
  2. Use the cursor buttons to select “PAD EQ”, and press the [ENTER] button.

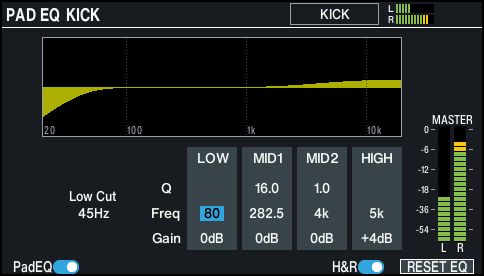

  3. The PAD EQ screen appears.
  5. Select the pad to configure.
  6. Ø “Selecting the pad to set”
  7. Press the [F1] (PadEQ) button to switch the pad equalizer on/off.
  8. Change the pad equalizer settings.
  9. You can configure the settings for the head and rim separately.

  10. MEMO

    Press the [F6] (RESET EQ) button to restore the equalizer settings to their default values.

  11. Press the [KIT] button to return to the KIT screen.
