Setting the colors for the buttons and dial (KIT COLOR)

You can change the colors of the buttons on a kit-by-kit basis ([KIT] button, [−] [+] button, [HEAD PREVIEW] button, [RIM] (PREVIEW) button), as well as for the dial and strainer indicator.

This helps to distinguish between drum kits. For example, you could assign different colors to drum kits of different genres, or use the color as a guide when editing instruments.

  1. Select “KIT COLOR” on the KIT OTHERS screen, and then press the [ENTER] button.

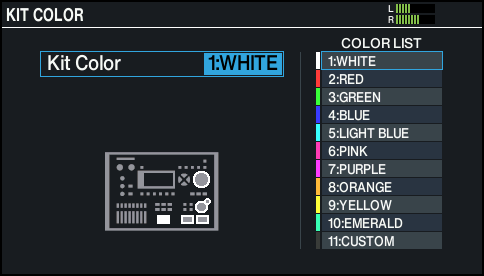

  2. The KIT COLOR screen appears.
  4. Use the dial to select the LED color.

  5. MEMO

    Select “11:CUSTOM” to adjust the RGB values for setting a custom LED color.

  6. Press the [KIT] button to return to the KIT screen.
