Configuring the drum kit-related settings (KIT OPTION)

Sets the brush, drum kit tempo, KIT screen view and so on.

Ø For details on the parameters that can be edited, refer to “Data List” (Roland website).

  1. Select “KIT OPTION” on the KIT OTHERS screen, and then press the [ENTER] button.
  2. Press the function buttons to access the respective settings screens.
  3. Cell_header

    Screen

    Explanation

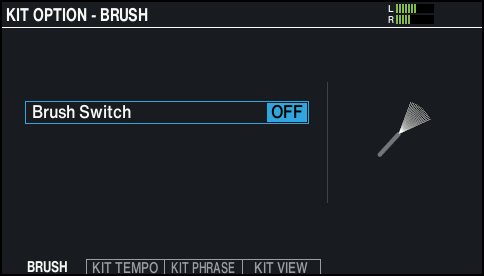

    KIT OPTION - BRUSH screen

    You can specify whether you’re performing with sticks or with brushes.

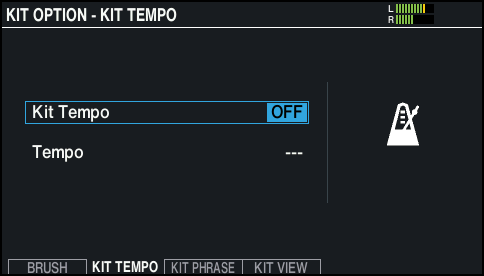

    KIT OPTION - KIT TEMPO screen

    When you select a drum kit, the tempo you specify here is automatically applied.

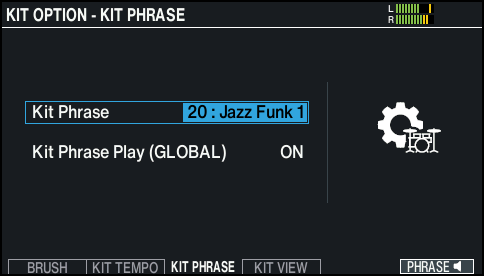

    KIT OPTION - KIT PHRASE screen

    Plays the phrase of the currently selected drum kit, letting you check the sound.

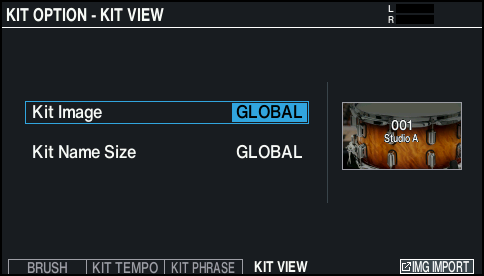

    KIT OPTION - KIT VIEW screen

    Configures the background and text size for the KIT screen.

  4. Use the cursor buttons to select a parameter, and use the [-] [+] buttons or the dial to edit the value.
  5. Press the [KIT] button to return to the KIT screen.
