Configuring the routing for USB audio (ROUTING)
This shows you how to configure the routing for the USB audio input/output.
Use this to directly input the sound from your computer to the pads of the V71, or to limit the sounds sent from the V71 to your computer.
The standard setting is “NORMAL”.
MEMO
This is enabled when the Driver Mode is “VENDOR”.

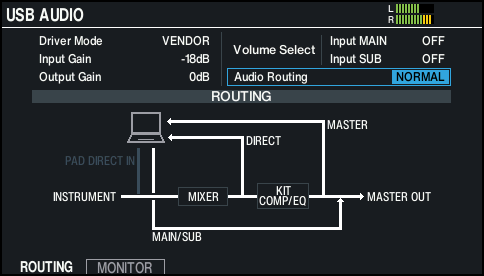

NORMAL
V71 Ó computer: MASTER OUT, DIRECT OUT 1–8, direct output of each pad
Computer Ó V71: MAIN, SUB

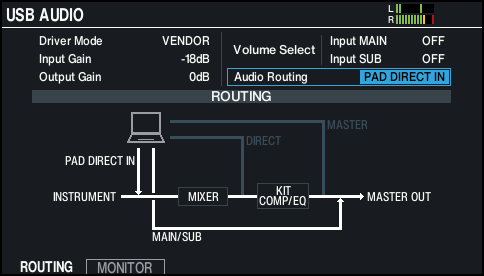

PAD DIRECT IN
V71 Ó computer: All USB audio output from the V71 is muted.
Computer Ó V71: MAIN, SUB, direct input to each pad

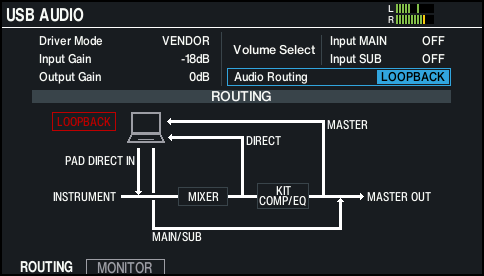

LOOPBACK
V71 Ó computer: MASTER OUT, DIRECT OUT 1–8, direct output of each pad
Computer Ó V71: MAIN, SUB, direct input to each pad
- A dialog box appears when you use the “LOOPBACK” setting.
NOTE
Use caution with the LOOPBACK setting, as the USB AUDIO input and output of the V71 may be inadvertently connected depending on the settings of your computer or the DAW to which you’re connecting. This may result in a loud noise (loopback).
Audio routing I/O chart
| Audio Routing | ||
|---|---|---|---|
NORMAL | PAD DIRECT IN | LOOPBACK | |
V71 Ó computer | |||
MASTER OUT | µ | Muted | µ |
DIRECT OUT | µ | Muted | µ |
Direct output of each pad | µ | Muted | µ |
Computer Ó V71 | |||
INPUT MAIN/SUB | µ | µ | µ |
PAD DIRECT IN | Muted | µ | µ |
