Loading backup data from an SD card (LOAD)
Here’s how you can load backup data into the V71 that’s saved on an SD card.
- Insert the SD card into the V71.
- Ø “Side panel and front panel”
- Press the [BACKUP] button.
- Use the cursor buttons or the dial to select “LOAD” and press the [ENTER] button.

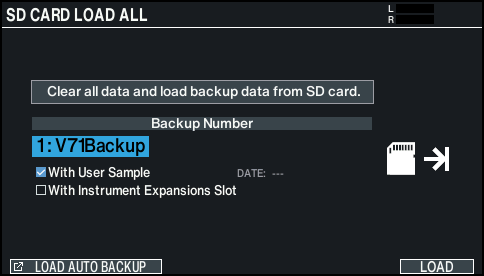

- The SD CARD LOAD ALL screen appears.
- Configure the load settings.
- Parameter select: use cursor buttons
- Value select: use [-] [+] buttons or dial
Parameter
Explanation
Backup Number
Selects the backup number.
The date of backup is shown in the backup data that’s saved when connected via Wi-Fi.
With User Samples
Selects whether user samples are also loaded.
With Instrument Expansion Slots
Selects whether to load the Instrument Expansions.
- You can’t load Instrument Expansions into a slot if they aren’t installed in the rack.
Ø “Configuring the Instrument Expansions/Kit Packs”
- You can’t load Instrument Expansions into a slot if they aren’t installed in the rack.
- * When you load user samples, all user samples already present in this unit are overwritten. Depending on the size of the user samples, it might take ten minutes or more to load the data.
- Press the [F6] (LOAD) button.

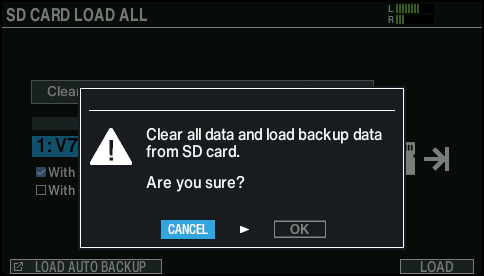

- A confirmation message appears.
- If you decide to cancel, select “CANCEL” and press the [ENTER] button.
- Select “OK” and press the [ENTER] button.
- The backup data is loaded from the SD card.
- Press the [ENTER] button to finish the operation.
