Deleting Backup Data from an SD Card (DELETE/DELETE 1 KIT)

Here’s how to delete unneeded backup data (including user samples) from an SD card.

  1. Insert the SD card into the V71.
  2. Ø “Side panel and front panel”
  3. Press the [BACKUP] button.
  4. Use the cursor buttons or the dial to select the backup menu, and press the [ENTER] button.
  5. Cell_header

    Backup menu

    Explanation

    DELETE

    Deletes the backup data.

    DELETE 1 KIT

    Deletes the kit backup data.

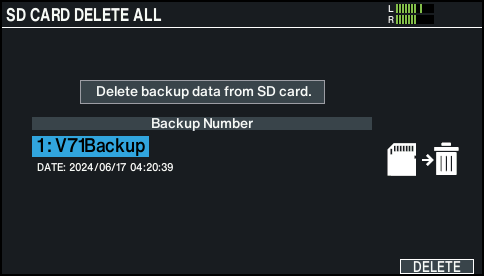

  6. Example: using DELETE
  8. Make deletion settings.
  9. Cell_header

    Parameter

    Explanation

    DELETE

    Selects the backup number that you want to delete.

    DELETE 1 KIT

    Selects the kit backup number that you want to delete.

  10. MEMO

    The date of backup is shown in the backup data that’s saved when connected via Wi-Fi.

  11. Press the [F6] (DELETE) button.

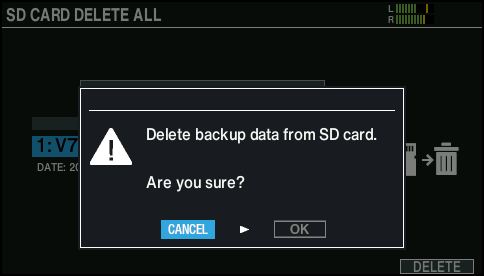

  12. A confirmation message appears.
  13. Example: using DELETE
  15. If you decide to cancel, select “CANCEL” and press the [ENTER] button.
  16. Select “OK” and press the [ENTER] button.
  17. The backup data is deleted from the SD card.
  18. Press the [ENTER] button to finish the operation.
