Turning the power on

When supplying power via the USB port

  1. Connect the included USB Type-C cable to a 5V USB AC adaptor or to the USB port on your computer.

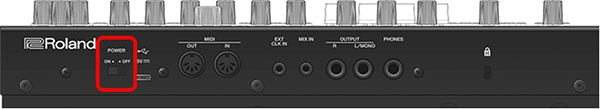

  2. To turn on the power, slide the [POWER] switch of this unit to “ON”.

When supplying power via batteries

  1. Insert the batteries by following the steps in “Installing the batteries”.
  2. To turn on the power, slide the [POWER] switch of this unit to “ON”.

Installing the batteries

As an alternative to USB bus power, you can use commercially available AA nickel-metal hydride batteries or alkaline batteries to power the unit.

  1. Remove the battery cover.
  2. * When turning the unit over, be careful so as to protect the buttons and knobs from damage. Also, handle the unit carefully; do not drop it.
  3. Taking care to observe the correct orientation of the batteries, insert the batteries into the battery case.
  4. Close the battery cover.
  5. * If you handle the battery improperly, you risk explosion and fluid leakage. Make sure that you carefully observe all of the items related to batteries that are listed in the “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (“USING THE UNIT SAFELY”) leaflets for proper use.

Battery replacement indicator

When the batteries have run down, the message “Battery Low!” appears on the screen.

When this occurs, install new batteries.
