Switching between tones

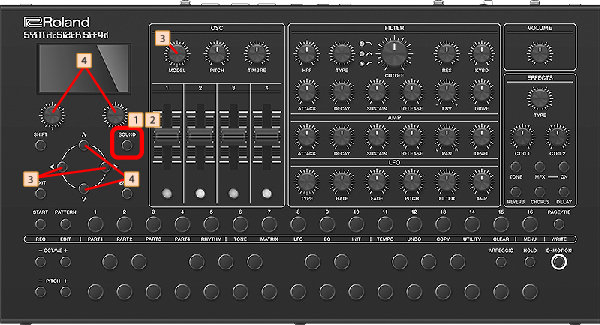

  1. On any screen besides the PATTERN screen, press the [SOUND] button to display the sound browser.
  2. Press the [SOUND] button to toggle between displaying the tones for each oscillator model, or the tones for each category.
  4. Use the [MODEL] knob or the [ç] [æ] buttons to select either the oscillator model or the category.
  5. Turn the [1] and [2] knobs or the [ä] [å] buttons to select a tone, and press the [ENTER] button to confirm.

MEMO

  1. You can use the keyboard buttons or an external keyboard to preview the selected tones.
  2. On the sound browser screen, press the [EXIT] button to reload the tone that was selected when you entered the sound browser.

Abbreviations when displaying categories

SH-4d

4D

WAVETABLE

WT

Cross FM

CF

CHORD

CH

DRAWING

DR

SH-3D

3D

SH-101

SH

JUNO-106

JU

SYNC

SY

RING

RI

PCM

PC

STEP

ST

HARMONIC

HA

User Tone

UT

To save an edited tone, execute the write operation.

For details on how to save a tone, refer to “Saving a tone/pattern (WRITE MENU)”.
