Switching between patterns

NOTE

When you switch to a different pattern, the previous unsaved tone/pattern is lost.

If you want to keep the unsaved tone or pattern, save the tone/pattern before switching patterns.

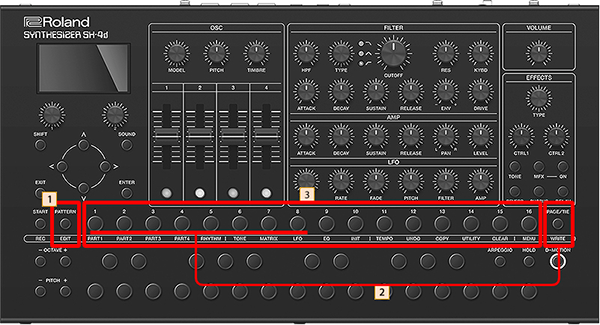

Using the [1]–[16] buttons to switch between patterns

  1. Press the [PATTERN] button.
  2. The PATTERN screen appears.
  4. Hold down the [PAGE/TIE] button and press the [1]–[8] buttons to select the bank that contains the pattern you want to select.
  5. Press the [1]–[16] buttons to select the pattern.
  6. If a pattern is still playing back, the unit switches to the new pattern you select when the current pattern finishes playing back.

Using the [2] knob to switch patterns

  1. On the PATTERN screen, turn the [2] knob to make the button ([1]–[16]) blink that corresponds to the pattern you want to select.
  2. Turn the [2] knob while holding down the [SHIFT] button to switch between banks.
  3. When playing back the pattern, press the [ENTER] button to confirm the pattern.

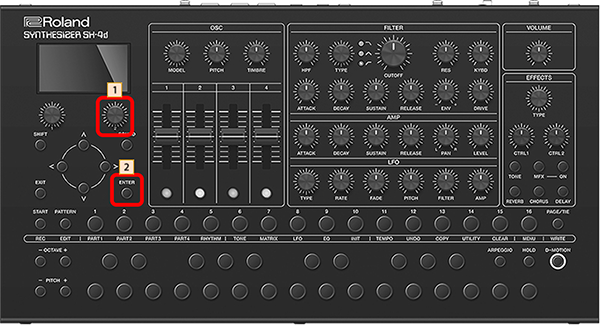

Using the pattern browser to switch between patterns

  1. Press the [ENTER] button on the PATTERN screen.
  2. The PATTERN BROWSER screen appears.
  3. Use the [1] or [2] knob or press the [ä] [å] buttons to select the pattern.
  4. The unit automatically switches to the pattern you select once the current pattern finishes playing back.

MEMO

To save the settings for a pattern you edit, execute the write operation.

For details on how to save a pattern, refer to “Saving a tone/pattern (WRITE MENU)”.
